Installation [09/2014 - ]: Procedure

INSTALL REAR SEAT OUTER BELT ANCHOR BRACKET ASSEMBLY
1. Engage the guide and install the rear seat outer belt anchor bracket assembly with the bolt.
  Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)
INSPECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
See step 1

INSTALL REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

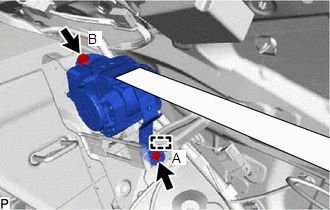

Engage the guide and temporarily install the rear seat 3 point type outer belt assembly with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side:

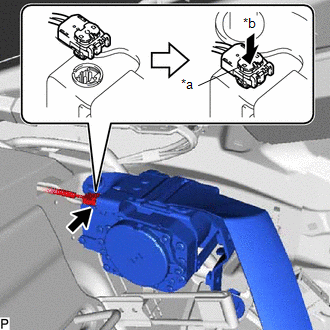

Connect the pretensioner connector and lock the locking button as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Locking Button
*b	Lock

NOTE:

Securely lock the locking button.

for RH Side:

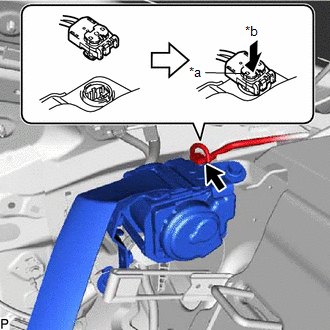

Connect the pretensioner connector and lock the locking button as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Locking Button
*b	Lock

NOTE:

Securely lock the locking button.

Check that the ELR locks.
NOTE:
The check should be performed with the rear seat 3 point type outer belt assembly installed to the vehicle.
1. With the rear seat 3 point type outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

INSTALL INNER ROOF SIDE GARNISH ASSEMBLY
Refer to PROCEDURE - Step 19 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 18 [11/2017 - ]
INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 21 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 20 [11/2017 - ]
CONNECT FRONT SEAT OUTER BELT ASSEMBLY
See step 8
INSTALL LAP BELT OUTER ANCHOR COVER
See step 9
INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)
Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - ]
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
1. Install the rear seat headrest assembly.
INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)
Refer to PROCEDURE - Step 2 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - ]
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
HINT:

Use the same procedure as for the LH side.
INSTALL REAR SIDE SEATBACK ASSEMBLY
Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]

CONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

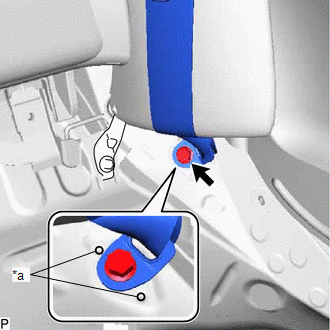

Connect the floor anchor of the rear seat 3 point type outer belt assembly with the bolt.

*a	Indented Part

Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:

Do not allow the anchor part of the rear seat 3 point type outer belt assembly to overlap the indented parts of the floor panel.

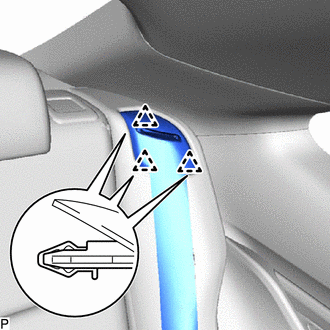

Engage the 3 clips to connect the belt guide unit of the rear seat 3 point type outer belt assembly.

INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 8 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 8 [11/2017 - ]
INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - ]
INSTALL FRONT DOOR SCUFF PLATE
Refer to PROCEDURE - Step 38 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 37 [11/2017 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2014 - 10/2015] , or refer to INITIALIZATION [10/2015 - 11/2017] , or refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [09/2014 - 11/2017] , or refer to DIAGNOSIS SYSTEM [11/2017 - ]
