Installation [09/2014 - 11/2017]: Procedure

1. Place the rear seatback assembly LH in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Engage the guide and install the rear seatback assembly LH with the 3 bolts.

   Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

3. Engage the 5 fasteners.
4. Engage the 2 fasteners and 3 clips.

1. Place the rear seatback assembly RH in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Engage the guide and install the rear seatback assembly RH with the 3 bolts.

   Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

3. Engage the 5 fasteners.
4. Engage the fastener and 2 clips.

1. Pass the rear seat 3 point type outer belt assembly LH through the rear side seatback assembly LH.
2. Install the rear side seatback assembly LH with the 2 bolts.

   Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

Refer to PROCEDURE - Step 13

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

1. Install the 2 rear seat headrest assemblies.

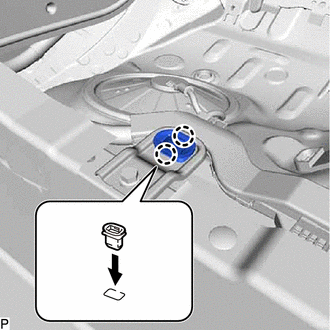

1. Engage the 2 claws to install a new rear seat cushion lock hook as shown in the illustration.

   HINT:

   Use the same procedure for the RH side and LH side.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place the rear seat cushion assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Pass the 2 rear seat inner belt assemblies through the rear seat cushion assembly.
3. Engage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly to the 2 child restraint seat anchor bracket hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

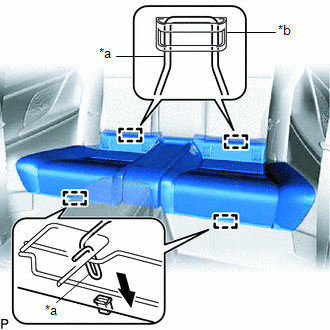

   *a	Rear Seat Cushion Frame Hook
   *b	Child Restraint Seat Anchor Bracket Hook

4. Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly to the 2 rear seat cushion lock hooks as shown in the illustration.
5. Confirm that the rear seat cushion assembly is securely installed.
