Replacement [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN AUTOMATIC TRANSMISSION FLUID

    Refer to PROCEDURE - Step 1

  2. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  3. REMOVE TRANSFER CASE OIL SEAL

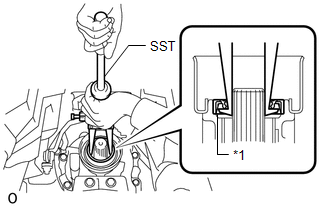

    1. Using SST, remove the transfer case oil seal from the transfer case sub-assembly.
      GTY470428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal
      • SST: 09308-00010
  4. INSTALL TRANSFER CASE OIL SEAL

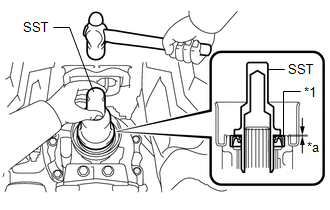

    1. Using SST and a hammer, install a new transfer case oil seal to the transfer case sub-assembly.
      GTY509026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal
      *a Depth
      • SST: 09325-40010

      Standard Depth

      2.3 to 2.7 mm (0.0906 to 0.106 in.)

    2. Apply MP grease to the lip of the transfer case oil seal.
  5. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]

  6. ADD AUTOMATIC TRANSMISSION FLUID

    Refer to ADJUSTMENT [09/2014 - 11/2017] , or refer to ADJUSTMENT [11/2017 - 09/2020] , or refer to ADJUSTMENT [09/2020 - ]

  7. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - ]
