Removal [09/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE SHIFT LEVER CAP
- Using a screwdriver, disengage the 2 claws as shown in the illustration and remove the shift lever cap from the shift position indicator.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Do not damage the shift lever cap and shift position indicator.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to REMOVAL [09/2014 - 11/2017]
, or refer to REMOVAL [11/2017 - ]
- REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 2
- DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
- Move the shift lever to N.

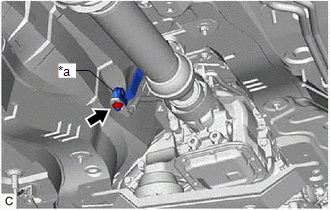

- Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [09/2014 - 10/2018]
, or refer to REMOVAL [10/2018 - ]
- REMOVE NO. 1 CONSOLE BOX DUCT

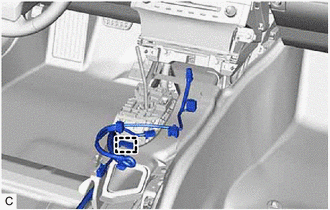

- Disengage the clamp to disconnect the wire harness from the No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

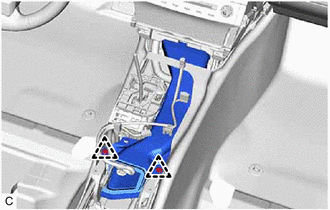

- Remove the 2 clips and No. 1 console box duct.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

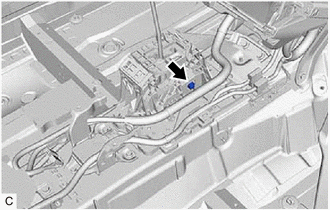

- Disconnect the shift lock control ECU connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

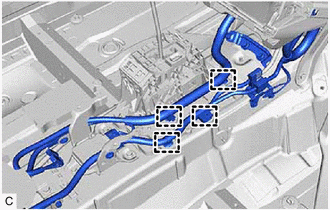

- Disengage the 4 clamps to disconnect the wire harness from the transmission floor shift assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

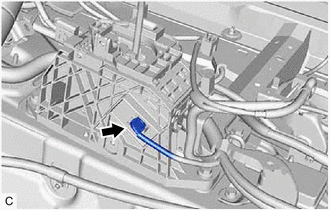

- Disconnect the transmission control switch connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

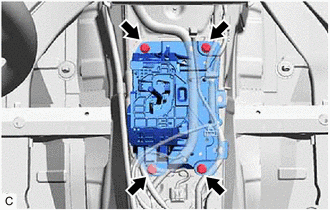

- Remove the 4 bolts and transmission floor shift assembly from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
