Removal [09/2014 - ]: Procedure

Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - ]

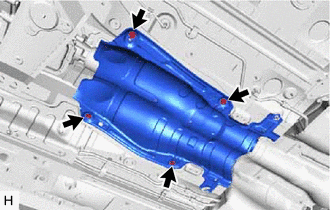

1. Remove the 4 nuts and front No. 1 floor heat insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

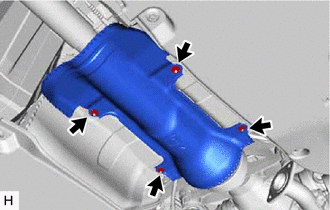

1. Remove the 4 nuts and No. 1 fuel tank protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put matchmarks on the rear drive pinion companion flange and propeller with center bearing shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the 3 bolts, 3 washers and 3 nuts.
   NOTE:

   The propeller intermediate shaft assembly and flexible coupling should not be disconnected.

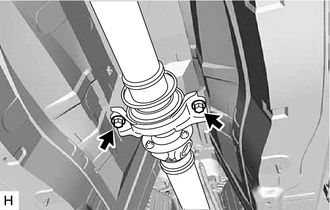

3. Remove the 2 bolts and 2 adjusting washers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Some vehicles are not equipped with the adjusting washers.

4. Pull out to remove the propeller with center bearing shaft assembly.
5. Insert SST into the transmission to prevent oil leakage.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09325-40010
   NOTE:

   Be careful not to damage the transfer case oil seal.
