Reassembly [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL REMOTE OPERATION CONTROLLER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL SHIFT POSITION INDICATOR
    1. Install the shift position indicator to the console panel sub-assembly with the screw.

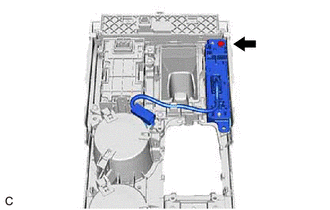

      GTY502772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 1.6 N.m (16 kgf/cm, 14 in.lbf)

    2. Engage the clamp and 2 guides.

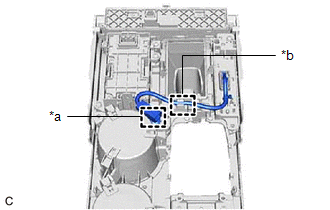

      GTY521533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
