DTC P0722: Output Speed Sensor Circuit No Signal [09/2014 - 10/2015]: Procedure

1. Check the transmission revolution sensor (SP2) installation.

   OK

   The installation bolt is tightened properly and there is no clearance between the sensor and transmission case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	OK
   *b	NG

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY INSTALL TRANSMISSION REVOLUTION SENSOR (SP2) OR REPLACE TRANSMISSION REVOLUTION SENSOR (SP2). Refer to  INSTALLATION [09/2014 - ]

Result:

OK

See step  2

1. Disconnect the F48 transmission revolution sensor (SP2) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Revolution Sensor (SP2))

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	560 to 680 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (SP2). Refer to  COMPONENTS [09/2014 - ]

Result:

OK

See step  3

1. Connect the F48 transmission revolution sensor (SP2) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

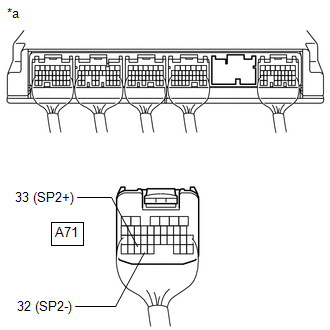

   *a	Rear view of wire harness connector (to ECM)

2. Disconnect the A71 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A71-33 (SP2+) - A71-32 (SP2-)	20°C (68°F)	560 to 680 Ω
   A71-33 (SP2+) - Body ground	Always	10 kΩ or higher
   A71-32 (SP2-) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  COMPONENTS [09/2014 - 10/2015]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
