Section 1 (Automatic Transmission System (A760H) - Service Information (1 Of 2))
>>
Speed Sensor
>>
Components [09/2014 - ]
Components [09/2014 - ]
WARNING:
This page is about a different variant/trim than selected.

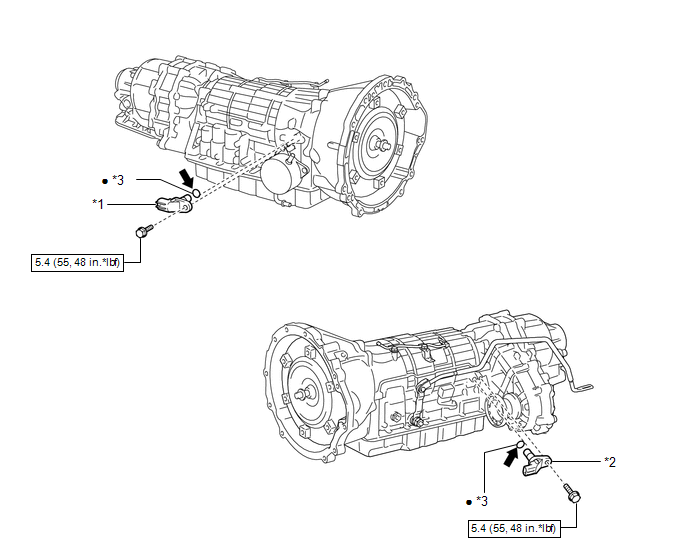

Fig 1: Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
TRANSMISSION REVOLUTION SENSOR (NT)
*2
TRANSMISSION REVOLUTION SENSOR (SP2)
*3
O-RING
-
-
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
ATF WS
-
-
