Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - 11/2017]

  4. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 20 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 20 [10/2015 - 11/2017]

  5. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 11 [10/2015 - 11/2017]

  6. DRAIN ENGINE COOLANT

    See step  5 [09/2014 - 10/2015], or see step  5 [10/2015 - 11/2017]

  7. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  11

  8. REMOVE NO. 1 RADIATOR HOSE

    See step  12

  9. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  14

  10. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  17

  11. REMOVE FAN SHROUD ASSEMBLY
    1. Disengage the 3 claws.
      GTY505025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides and remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  12. REMOVE COOLING FAN ECU

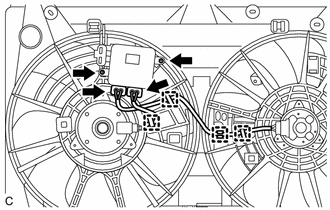

    1. Disconnect the cooling fan motor connector and No. 2 cooling fan motor connector.
      GTY519151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps.
    3. Remove the 2 screws and cooling fan ECU.
  13. REMOVE NO. 2 FAN

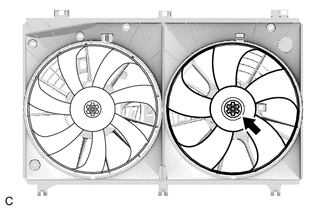

    1. Remove the nut and No. 2 fan.
      GTY505024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FAN

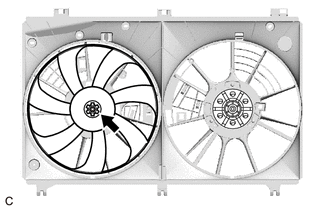

    1. Remove the nut and fan.
      GTY505023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE COOLING FAN MOTOR

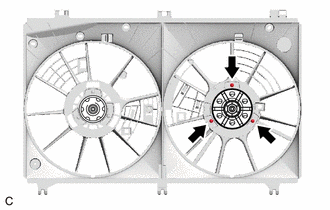

    1. Remove the 3 screws and cooling fan motor.
      GTY505034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 COOLING FAN MOTOR

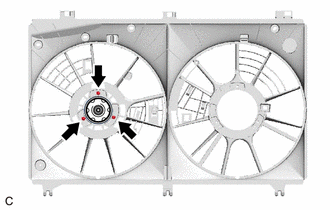

    1. Remove the 3 screws and No. 2 cooling fan motor.
      GTY517831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
