Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [09/2014 - 11/2017]

  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 10/2015] , or refer to INITIALIZATION [10/2015 - 11/2017]

  4. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [09/2014 - 10/2015] , or refer to REMOVAL [10/2015 - 11/2017]

  5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  6. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

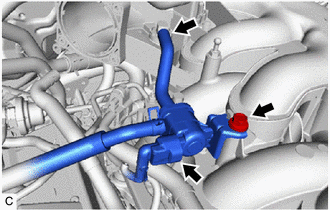

    1. Disconnect the purge valve (purge VSV) connector.
      GTY519528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.

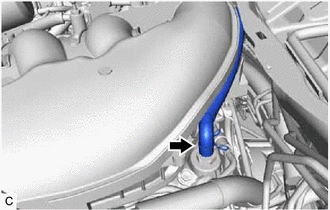

    4. Slide the clip and disconnect the ventilation hose assembly from the PCV valve (ventilation valve sub-assembly).
      GTY500838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

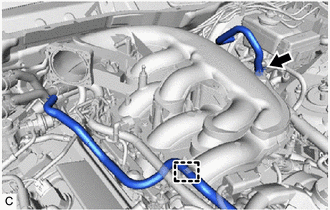

    5. Slide the clip and disconnect the union to check valve hose from the intake air surge tank assembly.
      GTY506739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

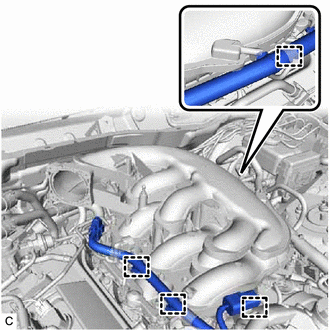

    6. Disconnect the No. 2 water by-pass hose from the intake air surge tank assembly clamp.
    7. Disengage the 4 wire harness clamps from the intake air surge tank assembly.
      GTY521741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

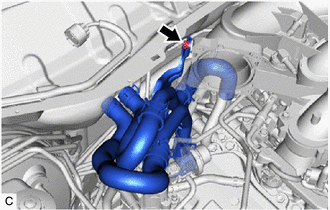

    8. Remove the bolt and separate the No. 3 water by-pass pipe from the intake air surge tank assembly.
      GTY506733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

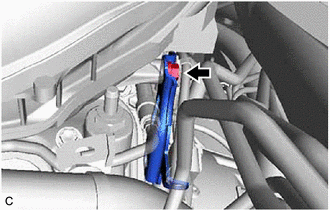

    9. Remove the bolt and separate the No. 2 surge tank stay from the intake air surge tank assembly.
      GTY506732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

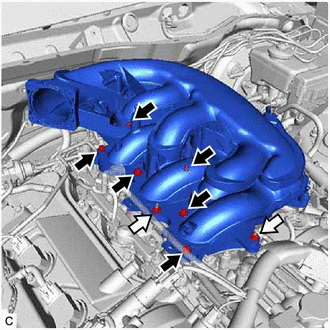

    10. Remove the 2 nuts from the intake air surge tank assembly.
      GTY517722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    11. Using a 5 mm hexagon socket wrench, remove the 6 bolts and intake air surge tank assembly from the intake manifold.
    12. Remove the air surge tank to intake manifold gasket from the intake air surge tank assembly.

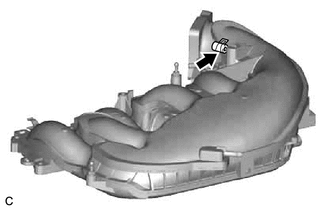

    13. Slide the clip and remove the plug from the intake air surge tank assembly.
      GTY505793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. DISCONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 3

  9. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. REMOVE INTAKE MANIFOLD

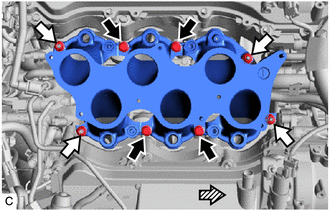

    1. Remove the 4 bolts, 4 nuts and intake manifold from the cylinder head sub-assembly.
      GTY505251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      Front
    2. Remove the 2 No. 1 intake manifold to head gaskets from the cylinder head sub-assembly.
  11. REMOVE STUD BOLT

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
      GTY519526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
