Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017]

  2. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    NOTE:

    Remove any dirt or foreign matter on the fuel tube connector and fuel pipe before performing this work.

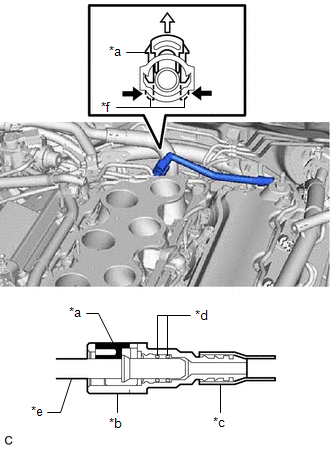

    1. Disconnect the fuel tube sub-assembly from the fuel delivery pipe sub-assembly.
      GTY513145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Fuel Tube Connector
      *c Nylon Tube
      *d O-ring
      *e Fuel Pipe
      *f Claw
      Push
      Pull out
      1. Disengage the 2 claws of the retainer. Pull out the retainer and disconnect the fuel tube connector from the fuel pipe.
        NOTE:

        Be sure to disconnect the fuel tube connector by hand.

      2. If the fuel tube connector and fuel pipe are stuck, push and pull the fuel tube connector to release it. Pull the fuel tube connector off of the fuel pipe carefully.
        NOTE:
        • Be sure to disconnect the fuel tube connector by hand.
        • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the fuel pipe.
        • Do not forcibly bend, twist or turn the nylon tube.
      3. Check if there is any foreign matter on the sealing surfaces of the disconnected fuel lines. Clean them if necessary.
      4. Cover the disconnected fuel pipe and fuel tube connector with plastic bags to prevent damage and contamination.
  3. DISCONNECT ENGINE WIRE

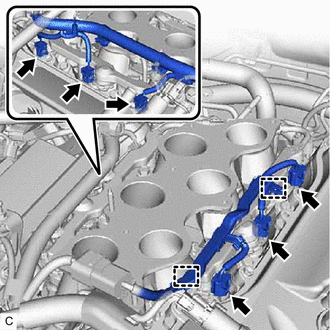

    1. Disconnect the 6 fuel injector assembly connectors.
      GTY520638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to disconnect the engine wire from the fuel delivery pipe sub-assembly.
  4. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

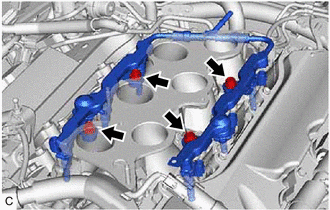

    1. Remove the 4 bolts and fuel delivery pipe sub-assembly with the fuel injector assemblies.
      GTY511763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
      • Be careful not to drop the fuel injector assemblies when removing the fuel delivery pipe sub-assembly.
    2. Remove the 4 delivery pipe spacers from the intake manifold.
  5. REMOVE FUEL INJECTOR ASSEMBLY
    1. Remove the 6 fuel injector assemblies from the fuel delivery pipe sub-assembly.
      NOTE:

      If the fuel injector assemblies are to be reused, reinstall them to the same cylinder they were removed from.

    2. Remove the 2 O-rings from each fuel injector assembly.
      GTY463901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    3. For reinstallation, attach a tag or label with the corresponding cylinder number to each fuel injector assembly.
      NOTE:

      Protect the fuel injector assemblies by covering them with plastic bags.
