Removal [09/2014 - 10/2015]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 5

  2. REMOVE SPARE WHEEL COVER TRAY

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 8

  5. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 13

  7. REMOVE FUEL PUMP CONTROL ECU

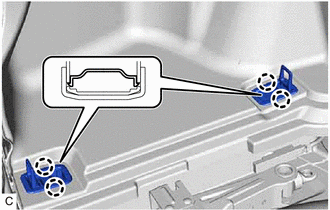

    1. Disengage the 4 claws and open the 2 covers.
      GTY511693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

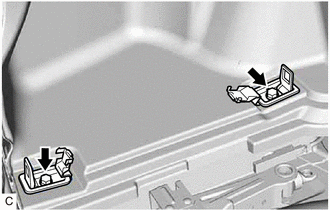

    2. Remove the 2 bolts and 2 rope hook assemblies.
      GTY511698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

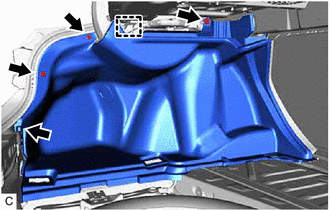

    3. Using a clip remover, remove the 4 clips.
      GTY520623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp and turn back the luggage compartment trim side cover LH.

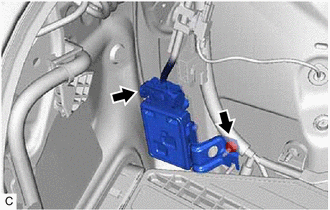

    5. Disconnect the fuel pump control ECU connector.
      GTY511699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the nut and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

  8. REMOVE FUEL PUMP CONTROL ECU BRACKET
    1. Remove the 2 screws and fuel pump control ECU bracket.
      GTY416147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
