Installation [11/2017 - ]: Procedure

  1. INSTALL VACUUM PUMP ASSEMBLY
    1. When using a new vacuum pump assembly:
      1. Apply engine oil to the No. 2 O-ring and No. 3 O-ring which are installed to a new vacuum pump assembly.
        GTY809915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 No. 2 O-ring
        *2 No. 3 O-ring
        Engine Oil
    2. When reusing the vacuum pump assembly:
      1. Apply engine oil to a new No. 2 O-ring and No. 3 O-ring and install them to the vacuum pump assembly.
        GTY809915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 No. 2 O-ring
        *2 No. 3 O-ring
        Engine Oil
    3. Apply engine oil to the inner surface of the installation hole.
    4. Temporarily install the vacuum pump assembly so that the oil pipe engages with the hole of the camshaft and the coupling teeth engages with the groove of the camshaft.

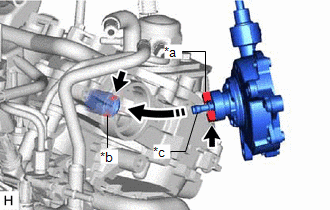

      GTY837195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Coupling Teeth
      *b Groove
      *c Oil Pipe
      NOTE:
      • Ensure that the vacuum pump assembly is installed securely.
      • Be careful not to pinch the O-ring.
    5. Install the vacuum pump assembly with the 3 bolts.

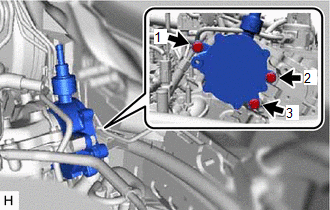

      Fig 1: Vacuum Pump Assembly Bolts Tightening Sequence
      GTY805551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      NOTE:
      • After installation, check that there are no gaps between the matching surfaces and that the vacuum pump assembly is not installed at an angle.
      • Tighten the 3 bolts in the order shown in the illustration.
  2. INSTALL NO. 2 WATER BY-PASS PIPE
    1. Install the No. 2 water by-pass pipe with the bolt.

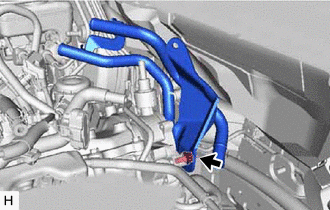

      GTY794157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. CONNECT NO. 12 WATER BY-PASS HOSE
    1. Connect the No. 12 water by-pass hose to the No. 2 water by-pass pipe and slide the clip to secure it.

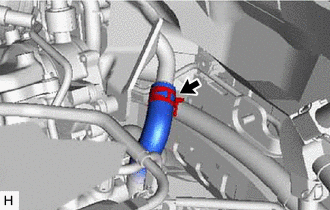

      GTY794161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT OUTLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 68

  5. CONNECT INLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 67

  6. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 7

  7. CONNECT VACUUM HOSE ASSEMBLY

    Refer to PROCEDURE - Step 8

  8. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [11/2017 - ]

  10. INSTALL NO. 2 ENGINE WIRE
    1. Install the No. 2 engine wire with the bolt.

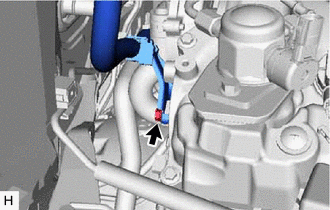

      GTY831445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  11. INSTALL BATTERY

    Refer to PROCEDURE - Step 3

  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  13. INSPECT VACUUM PUMP OPERATION

    Refer to ON-VEHICLE INSPECTION [11/2017 - ]
