Installation [11/2017 - ]: Procedure
- INSTALL INTAKE MANIFOLD

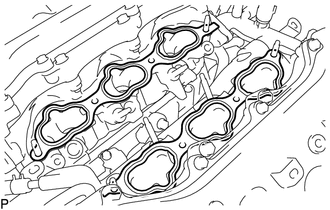

- Install 2 new No. 1 intake manifold to head gaskets to each cylinder head sub-assembly as shown in the illustration.NOTE:
- Align the port holes of the No. 1 intake manifold to head gaskets and cylinder head sub-assembly.
- Make sure that the No. 1 intake manifold to head gaskets are installed in the correct direction.
- Temporarily install the intake manifold to the cylinder head sub-assembly with the 4 bolts and 4 nuts.
- Uniformly tighten the 4 bolts and 4 nuts.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- Install 2 new No. 1 intake manifold to head gaskets to each cylinder head sub-assembly as shown in the illustration.
- INSTALL FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY
Refer to PROCEDURE - Step 2
- CONNECT WIRE HARNESS
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 FUEL TUBE SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL NO. 2 FUEL TUBE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- INSTALL INTAKE AIR SURGE TANK ASSEMBLY NOTE:
Do not apply oil to the bolts listed below.
Oil Application Prohibited Bolt Bolt for Intake Air Surge Tank Assembly and Intake Manifold - Install the No. 1 hose to hose tube to the intake air surge tank assembly with the 2 bolts.
Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)
- Install a new air surge tank to intake manifold gasket to the intake air surge tank assembly.
- Set the intake air surge tank assembly on the intake manifold.
- Using an E8 "TORX" socket wrench, install the 2 stud bolts to the intake manifold.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Install and uniformly tighten the 5 bolts and 2 nuts.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- Connect the No. 2 surge tank stay to the intake air surge tank assembly with the bolt.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

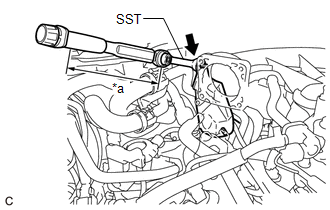

- Using SST, connect the No. 2 water by-pass pipe to the intake air surge tank assembly with the bolt.
- SST: 09290-41010
Specified tightening torque
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
- When using SST (fulcrum length of 69 mm (2.72 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
14.7 N.m (150 kgf/cm, 11 ft.lbf)
*1 Torque Wrench Fulcrum Length - Connect the 6 wire harness clamps to the intake air surge tank assembly.
- Engage the 2 clamps to connect the No. 2 water by-pass hose to the intake air surge tank assembly.
- Connect the ventilation hose assembly to the intake air surge tank assembly and slide the clip to secure it.
- Connect the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- Connect the No. 1 fuel vapor feed hose to the intake air surge tank assembly.
- Connect the purge valve (purge VSV) connector.
- Install the No. 1 hose to hose tube to the intake air surge tank assembly with the 2 bolts.
- CONNECT VACUUM HOSE ASSEMBLY
- Connect the union to check valve hose to the vacuum pump assembly and slide the clip to secure it.
- Connect the vacuum hose assembly to the No. 1 hose to hose tube and slide the clip to secure it.
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to INSTALLATION [09/2014 - ]
- INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY
Refer to INSTALLATION [11/2017 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
