Adjustment [09/2014 - 11/2017]: Procedure

See step  1

1. Horizontally and vertically adjust the hood.

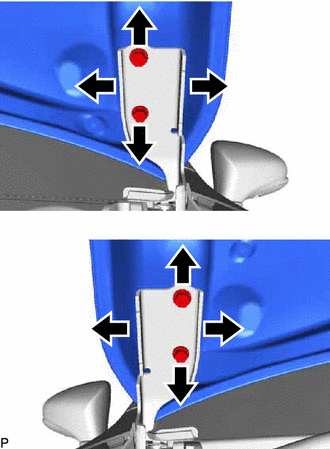

   1. Loosen the 4 hinge bolts of the hood.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Adjust the clearance between the hood and front fender by moving the hood.
   3. Tighten the 4 hinge bolts after adjustment.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

2. Adjust the height of the front end of the hood using the hood bumper cushions.

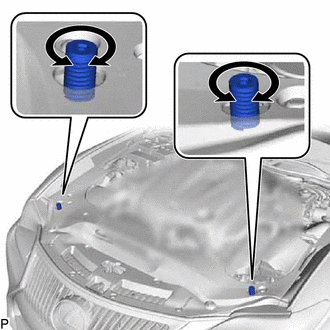

   1. Adjust the 2 hood bumper cushions so that the heights of the hood and fenders are aligned.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Raise or lower the front end of the hood by turning the 2 hood bumper cushions.

3. Adjust the hood lock.
   1. Remove the engine room side cover.

      Refer to PROCEDURE - Step 1

   2. Remove the cool air intake duct seal.

      Refer to PROCEDURE - Step 2

   3. Remove the millimeter wave radar sensor assembly (w/ Dynamic Radar Cruise Control System).

      Refer to REMOVAL [09/2014 - 11/2017]

   4. Remove the hood lock release lever protector.

      See step  7

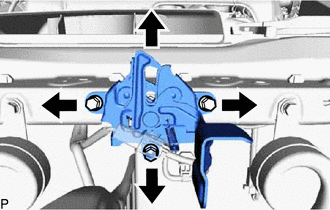

   5. Loosen the 3 bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   6. Adjust the hood lock and tighten the 3 bolts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

   7. Check that the striker can engage the hood lock smoothly.
   8. Install the hood lock release lever protector.

      See step  3

   9. Install the millimeter wave radar sensor assembly (w/ Dynamic Radar Cruise Control System).

      Refer to INSTALLATION [09/2014 - 11/2017]

   10. Install the cool air intake duct seal.

       Refer to PROCEDURE - Step 2

   11. Install the engine room side cover.

       Refer to PROCEDURE - Step 3
