Disassembly [11/2021 - ]: Procedure

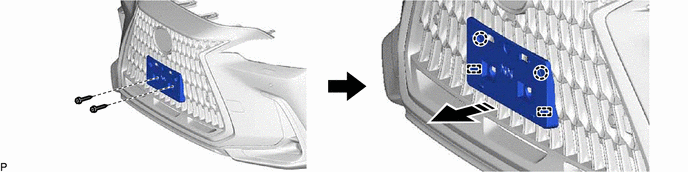

  1. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. GTY1054890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  2. REMOVE HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)
    Refer to PROCEDURE - Step 1
  3. REMOVE HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)
    1. Use the same procedure as for the LH side.
  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 4

  5. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
    1. Use the same procedure as for the LH side.
  6. REMOVE NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)
    Refer to PROCEDURE - Step 6
  7. REMOVE NO. 1 WASHER BRACKET (w/ Headlight Cleaner System)
    1. Use the same procedure as for the No. 2 washer bracket.

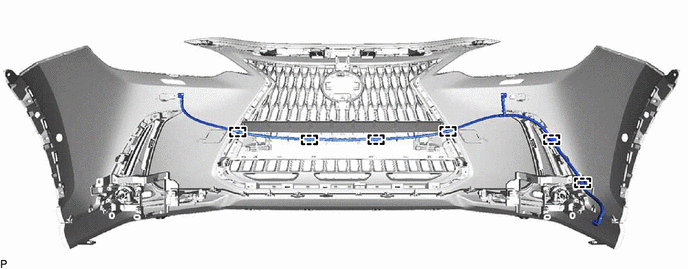

  8. REMOVE WASHER HOSE (w/ Headlight Cleaner System)
    1. GTY1054739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    Refer to PROCEDURE - Step 2

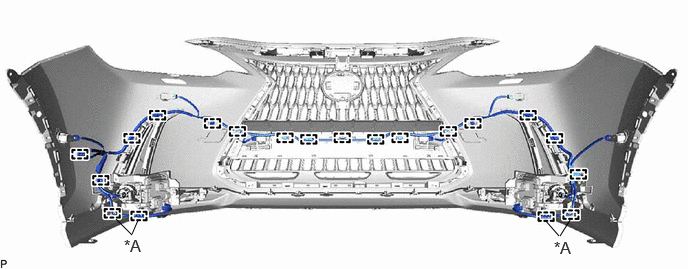

  10. REMOVE NO. 3 ENGINE ROOM WIRE (w/o Intuitive Parking Assist System)
    1. GTY1054993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Cornering Light - -

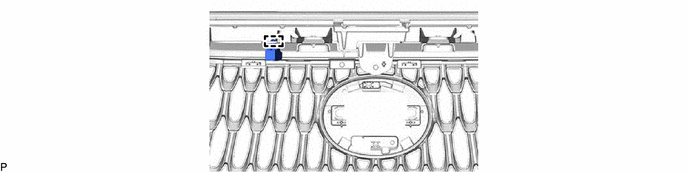

  11. REMOVE CONNECTOR COVER (w/o Panoramic View Monitor System)
    1. GTY1056269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 3

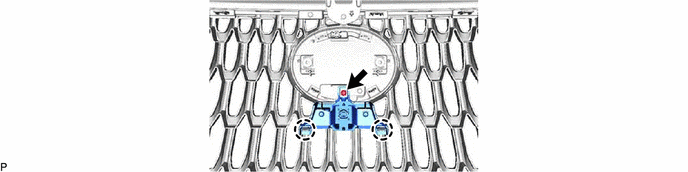

  13. REMOVE TELEVISION CAMERA COVER (w/ Panoramic View Monitor System)
    1. GTY1054737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

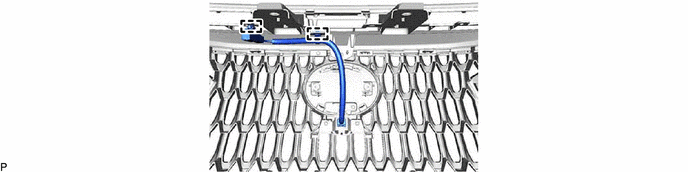

  14. REMOVE TELEVISION CAMERA WIRE (w/ Panoramic View Monitor System)
    1. GTY1054736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REMOTE PARKING ANTENNA ASSEMBLY (w/ Advanced Park)

    Refer to PROCEDURE - Step 2

  16. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  17. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  18. REMOVE FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  19. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
    Refer to PROCEDURE - Step 6
  20. REMOVE FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 7
  21. REMOVE NO. 3 ENGINE ROOM WIRE
    1. GTY1054993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Cornering Light - -

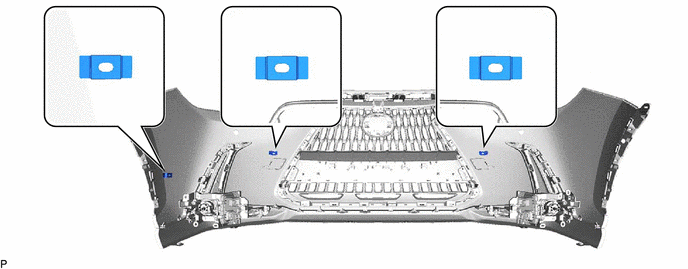

  22. REMOVE FRONT ULTRASONIC SENSOR CLIP
    1. GTY1054691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE CORNERING LIGHT ASSEMBLY LH (w/ Cornering Light)

    Refer to PROCEDURE - Step 2

  24. REMOVE CORNERING LIGHT ASSEMBLY RH (w/ Cornering Light)
    1. Use the same procedure as for the LH side.
  25. REMOVE FOG LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  26. REMOVE FOG LIGHT ASSEMBLY RH
    1. Use the same procedure as for the LH side.

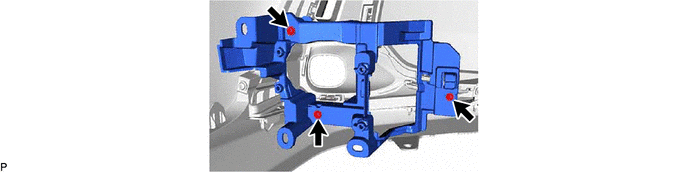

  27. REMOVE FOG LIGHT MOUNTING BRACKET LH
    1. GTY1055418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FOG LIGHT MOUNTING BRACKET RH
    1. Use the same procedure as for the LH side.

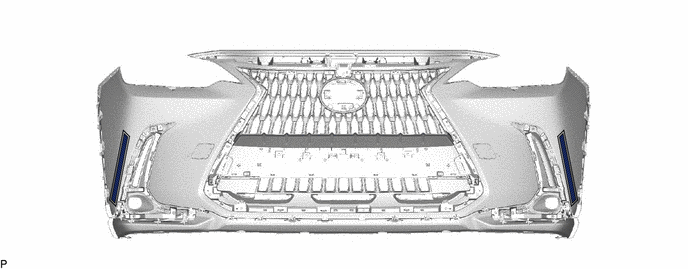

  29. REMOVE NO. 1 MOULDING TAPE
    1. GTY1055852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

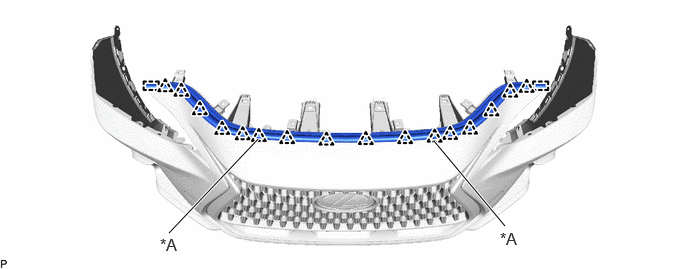

  30. REMOVE HOOD TO FRONT END PANEL SEAL
    1. GTY1204692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Clip - -

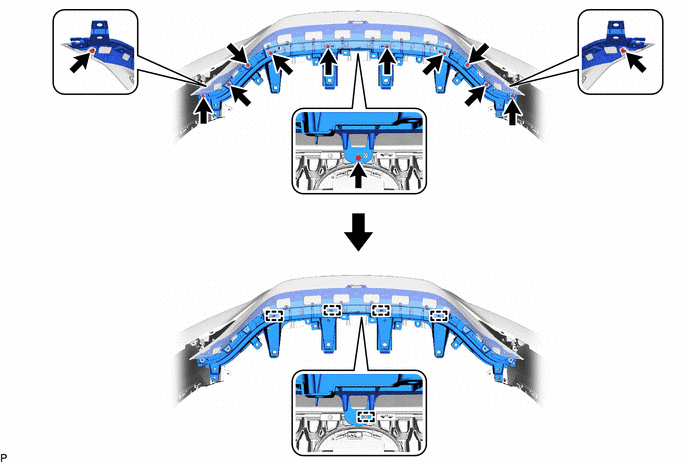

  31. REMOVE RADIATOR INNER GRILLE
    1. GTY1055410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

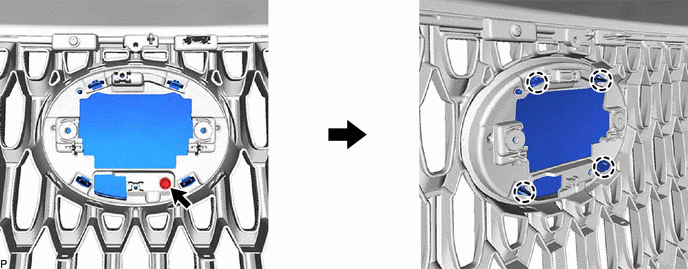

  32. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. GTY1054681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

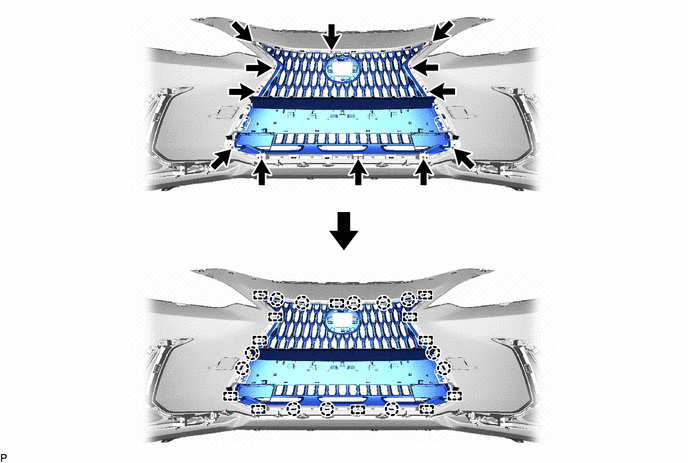

  34. REMOVE RADIATOR GRILLE
    1. GTY1054683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

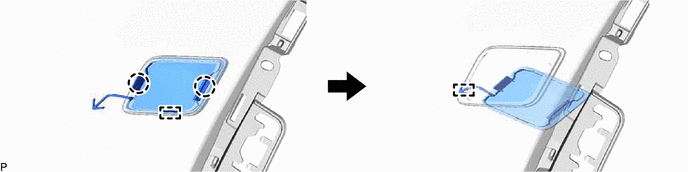

  35. REMOVE FRONT BUMPER HOLE COVER LH
    1. GTY1055406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FRONT BUMPER HOLE COVER RH
    1. Use the same procedure as for the LH side.

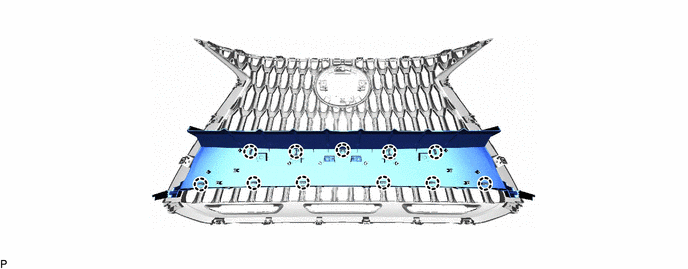

  37. REMOVE NO. 1 RADIATOR GRILLE SEAL
    1. GTY1054649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

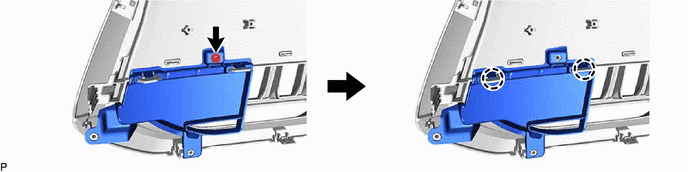

  38. REMOVE RADIATOR SIDE AIR SEAL LH (w/ Radiator Side Air Seal)
    1. GTY1054679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE RADIATOR SIDE AIR SEAL RH (w/ Radiator Side Air Seal)
    1. Use the same procedure as for the LH side.

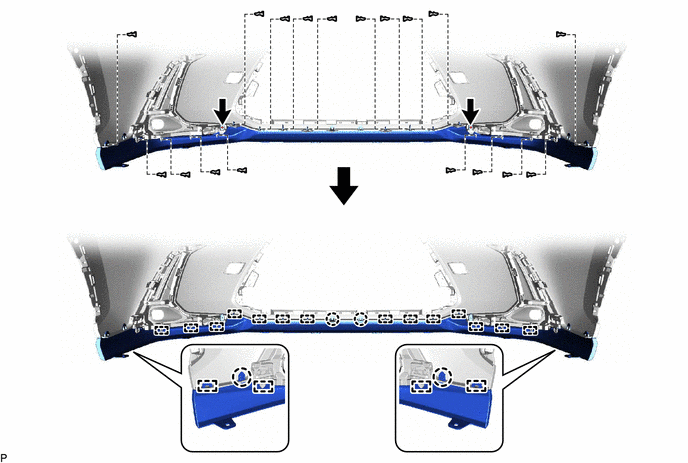

  40. REMOVE FRONT BUMPER GUARD
    1. GTY1055404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

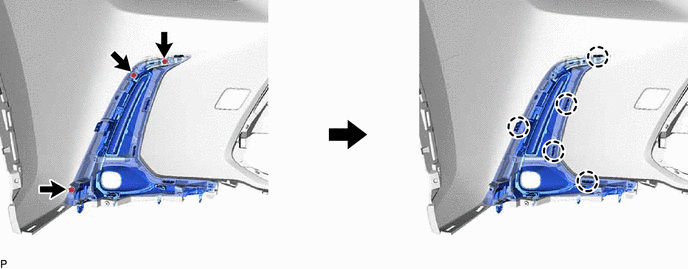

  41. REMOVE RADIATOR GRILLE LOWER SIDE LH
    1. GTY1054645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE RADIATOR GRILLE LOWER SIDE RH
    1. Use the same procedure as for the LH side.

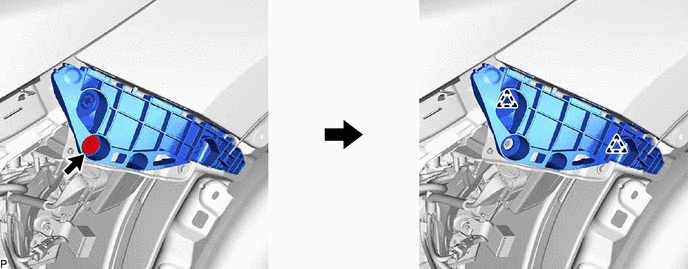

  43. REMOVE FRONT BUMPER SIDE RETAINER LH

    HINT:

    Perform this procedure only when replacement of the front bumper side retainer is necessary.

    1. GTY1055402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE FRONT BUMPER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.

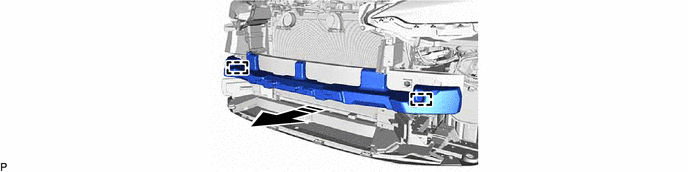

  45. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper energy absorber is necessary.

    1. GTY1055173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  46. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

    Refer to PROCEDURE - Step 11

  47. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
    1. Use the same procedure as for the LH side.

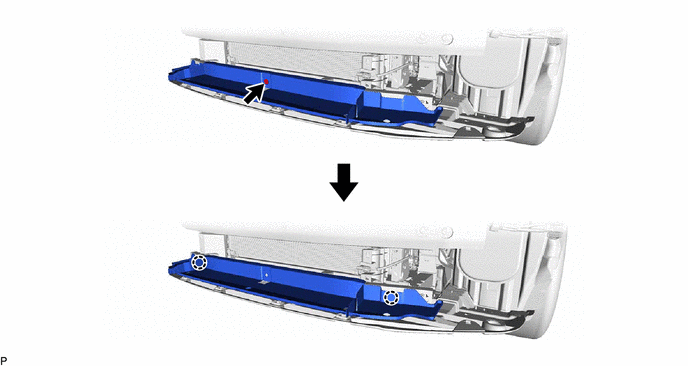

  48. REMOVE FRONT BUMPER LOWER ABSORBER

    HINT:

    Perform this procedure only when replacement of the front bumper lower absorber is necessary.

    1. GTY1054662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 2

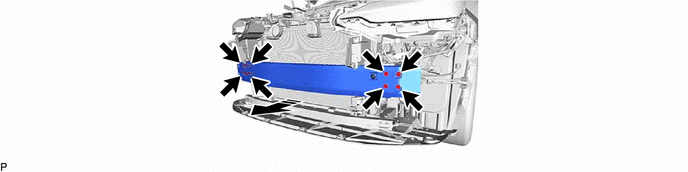

  50. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

    1. GTY1055445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

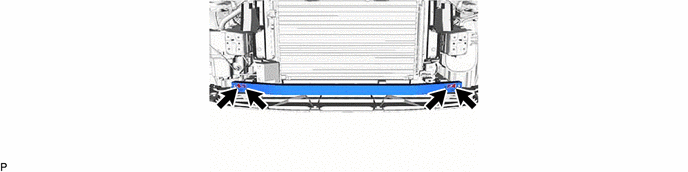

  51. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.

    1. GTY1055444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

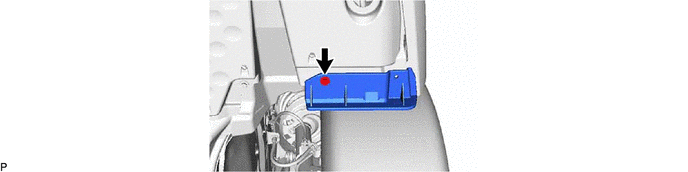

  52. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    HINT:

    Perform this procedure only when replacement of the front fender front splash shield LH is necessary.

    1. GTY1057146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH
    1. Use the same procedure as for the LH side.

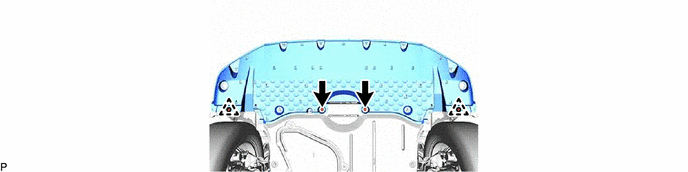

  54. REMOVE NO. 1 ENGINE UNDER COVER

    HINT:

    Perform this procedure only when replacement of the No. 1 engine under cover is necessary.

    1. GTY1054843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

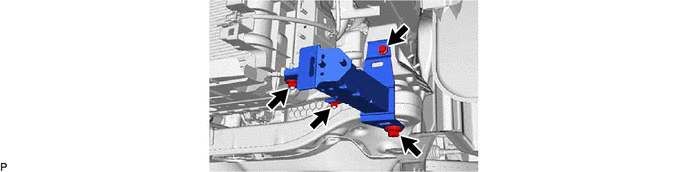

  55. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly is necessary.

    1. GTY1054838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
