Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    for Sport Package: Refer to REMOVAL [11/2021 - ]

    except Sport Package: Refer to REMOVAL [11/2021 - ]

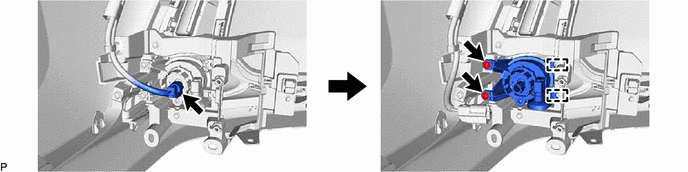

  2. REMOVE FOG LIGHT ASSEMBLY
    1. GTY1070296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
