Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE UNDER COVER HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  3. REMOVE FRONT FLOOR COVER LH
    Refer to PROCEDURE - Step 5
  4. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    NOTE:
    • Remove any dirt or foreign matter on the tube connector before performing this work.
    • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (fuel vapor containment valve (close tank with bolt valve assembly)).
    • Perform this work by hand. Do not use any tools.
    • Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly.
    • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly.
    • If the tube connector and pipe (fuel vapor containment valve (close tank with bolt valve assembly)) are stuck, push and pull to release them.
    1. GTY1074403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      *e Pipe (Fuel Vapor Containment Valve (Close Tank with Bolt Valve Assembly)) - -
      Pinch Pull
      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.

        HINT:

        Do not remove the retainer.

      2. Pull off the fuel tank vent hose sub-assembly.
  5. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    NOTE:
    • Remove any dirt or foreign matter on the tube connector before performing this work.
    • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (fuel vapor containment valve (close tank with bolt valve assembly)).
    • Perform this work by hand. Do not use any tools.
    • Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly.
    • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly.
    • If the tube connector and pipe (fuel vapor containment valve (close tank with bolt valve assembly)) are stuck, push and pull to release them.

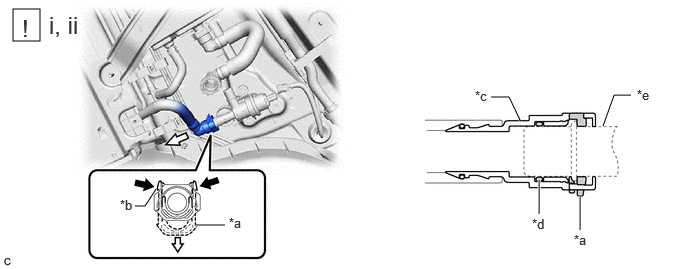

    1. GTY1074384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      *e Pipe (Fuel Vapor Containment Valve (Close Tank with Bolt Valve Assembly)) - -
      Pinch Pull
      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.

        HINT:

        Do not remove the retainer.

      2. Pull off the fuel tank vent hose sub-assembly.
  6. REMOVE FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK WITH BOLT VALVE ASSEMBLY)
    1. GTY1080537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
