Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. DRAIN FUEL
  3. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE ENGINE UNDER COVER HEAT INSULATOR
    1. GTY1075381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

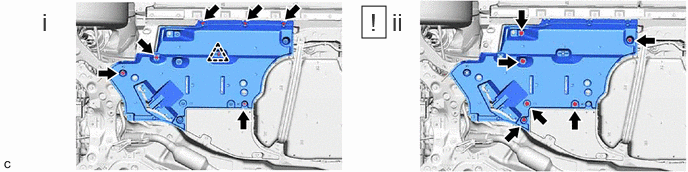

  5. REMOVE FRONT FLOOR COVER LH
    1. GTY1075587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip, 2 bolts and 4 screws.
      2. Turn the 6 clips and remove the front floor cover LH from the vehicle body.
        NOTE:

        If the 6 clips are not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.

        HINT:

        Do not remove the clips from the front floor cover LH.

  6. REMOVE FRONT CENTER FLOOR COVER RH
    1. GTY1075329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

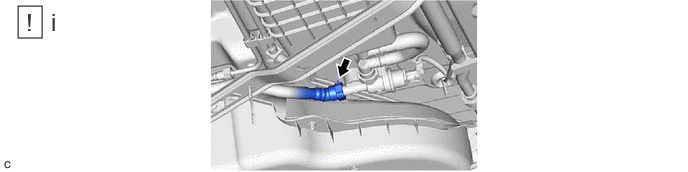

  7. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1075519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (close tank with bolt valve assembly).

        Refer to PRECAUTION [11/2021 - ]

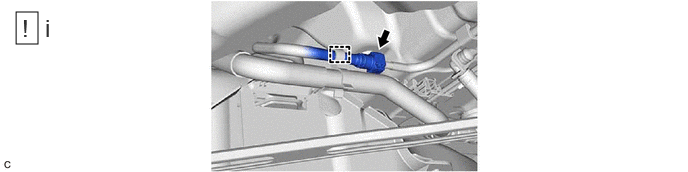

  8. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. GTY1074829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp.
      2. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.

        Refer to PRECAUTION [11/2021 - ]

  9. DISCONNECT FUEL TANK BREATHER TUBE
    1. GTY1076137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank breather tube from the fuel tank breather tube sub-assembly.

        Refer to PRECAUTION [11/2021 - ]

  10. DISCONNECT FUEL TANK FILLER PIPE ASSEMBLY
    1. GTY1075261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank filler pipe assembly from the fuel tank sub-assembly.

        Refer to PRECAUTION [11/2021 - ]

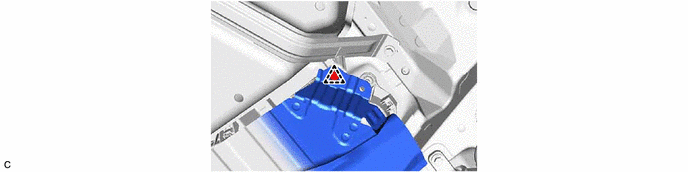

  11. DISCONNECT FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
    1. GTY1066533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

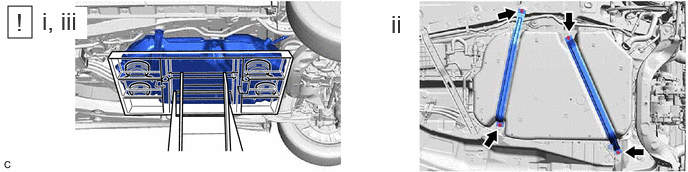

  12. REMOVE FUEL TANK SUB-ASSEMBLY
    WARNING:

    The fuel tank sub-assembly is very heavy. Be sure to follow the procedure described in the repair information, or the fuel tank sub-assembly may fall off the engine lifter.

    GTY563885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. GTY1075818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Support the fuel tank sub-assembly using an engine lifter.

        HINT:

        Using height adjustment attachments and plate lift attachments, keep the fuel tank sub-assembly horizontal.

      2. Remove the 4 bolts, No. 1 fuel tank band sub-assembly and No. 2 fuel tank band sub-assembly.
      3. Lower the engine lifter to remove the fuel tank sub-assembly.
        NOTE:
        • Be careful not to drop the fuel tank sub-assembly.
        • When removing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
  13. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. GTY1075346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

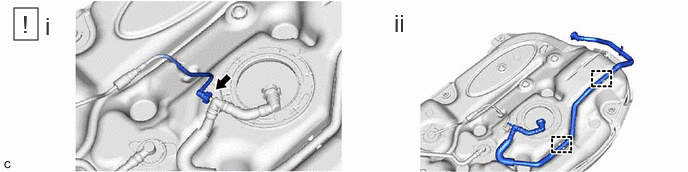

  14. REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1075178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank evaporation tube sub-assembly from the fuel tank vent hose sub-assembly.

        Refer to PRECAUTION [11/2021 - ]

      2. Disengage the 2 clamps and remove the fuel tank vent hose sub-assembly from the fuel tank sub-assembly.

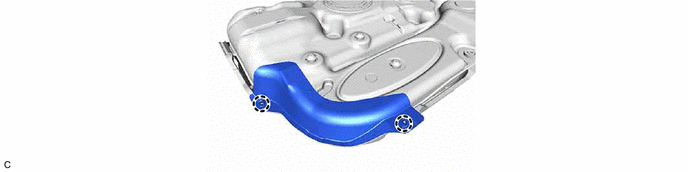

  15. REMOVE NO. 2 FUEL TANK PROTECTOR
    1. GTY1075336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

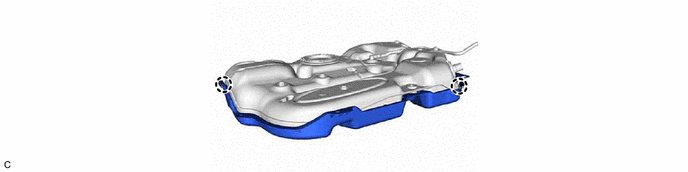

  16. REMOVE NO. 1 FUEL TANK PROTECTOR
    1. GTY1075345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 6 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 6 fuel tank cushion is necessary.

    1. GTY1075342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
