Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]

    Refer to PRECAUTION [11/2021 - ]

  2. READ VALUE USING GTS
    1. GTY1075510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Read the Data List.

        Powertrain > HV Battery > Data List

        Tester Display
        Hybrid Battery Temperature 1
        Hybrid Battery Temperature 2
        Hybrid Battery Temperature 3
        Hybrid Battery Temperature 4
        Hybrid Battery Temperature 5
        Hybrid Battery Temperature 6
        NOTE:

        If any of the temperatures listed in "Hybrid Battery Temperature 1 to 6" are 50°C or more, leave the vehicle until the temperature drops to less than 50°C.

  3. REMOVE SERVICE PLUG GRIP

    Refer to PROCEDURE - Step 5

  4. REMOVE INVERTER PROTECTOR NO. 2

    See step  8

  5. DISCONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 4

  6. REMOVE CONNECTOR COVER ASSEMBLY

    See step  10

  7. CHECK TERMINAL VOLTAGE

    See step  11

  8. INSTALL CONNECTOR COVER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1078466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T25 "TORX" socket wrench, install the connector cover assembly to the inverter with converter assembly with the bolt (A).

        Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

        NOTE:

        Do not touch the waterproof seal of the connector cover assembly.

      2. Install the bolt (B).

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  9. CONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 31

  10. INSTALL NO. 2 INVERTER PROTECTOR

    See step  18

  11. REMOVE BATTERY COOLING BLOWER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  12. REMOVE NO. 1 HV BATTERY COVER PANEL RH
    WARNING:

    Be sure to wear insulated gloves.

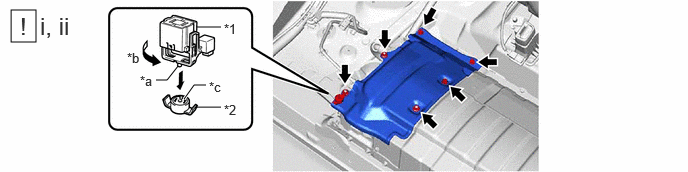

    1. GTY1079372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Service Plug Grip *2 Battery Cover Lock Striker
      *a Projection *b Turn
      *c Button - -
      1. Using the service plug grip, remove the battery cover lock striker.

        HINT:

        Insert the projection of the service plug grip and turn the button of the battery cover lock striker counterclockwise to release the lock.

      2. Remove the 3 bolts, 3 nuts and No. 1 HV battery cover panel RH from the HV battery.
  13. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1080349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Shield Ground - -
      1. Disconnect the 2 HV battery junction block assembly connectors.
        NOTE:

        Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

      2. Disconnect the shield ground from the HV battery.
  14. DISCONNECT FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.

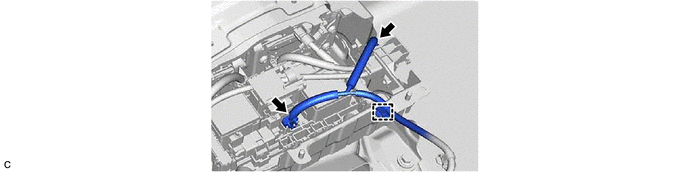

    1. GTY1074167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE HYBRID BATTERY HOSE ASSEMBLY

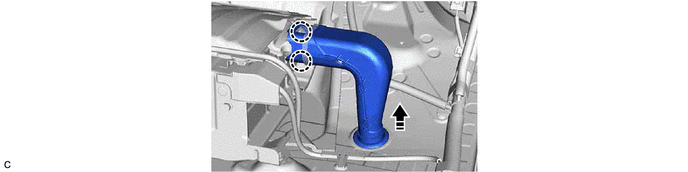

    1. GTY1074168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    Refer to PROCEDURE - Step 3
  17. DISCONNECT FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.

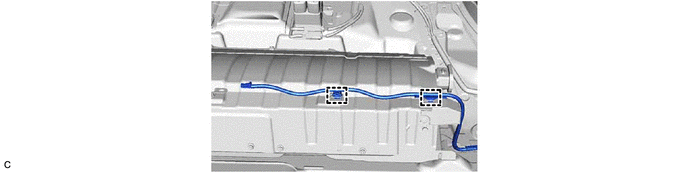

    1. GTY1074732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 4 HV BATTERY PROTECTOR
    WARNING:

    Be sure to wear insulated gloves.

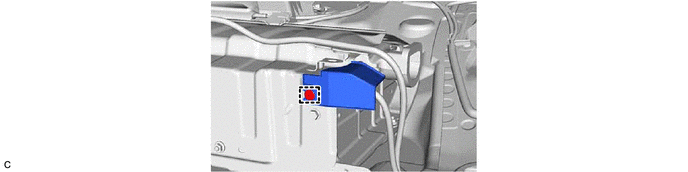

    1. GTY1074174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.

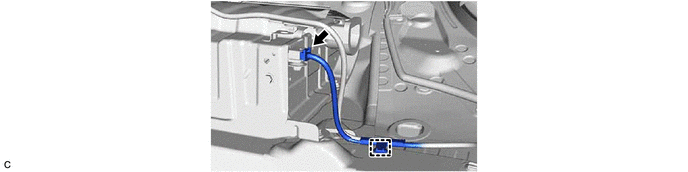

    1. GTY1074175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE HV BATTERY
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Do not allow foreign matter, such as grease or oil, to adhere to the bolts of the HV battery.
    • To prevent the wire harness from being caught, make sure to bundle the wire harness using insulating tape or equivalent.
    • Use cardboard or another similar material to protect the HV battery and vehicle body from damage.
    • Since the HV battery is very heavy, 2 people are needed to remove it. When removing the HV battery, be careful not to damage the parts around it.
    • When removing the HV battery from the vehicle, do not allow it to contact the vehicle.
    • When removing/installing/moving the HV battery, make sure not to tilt it more than 80°.
    • Insulate the disconnected terminals or connectors with insulating tape.
    • If the HV battery has been struck or dropped, replace it.

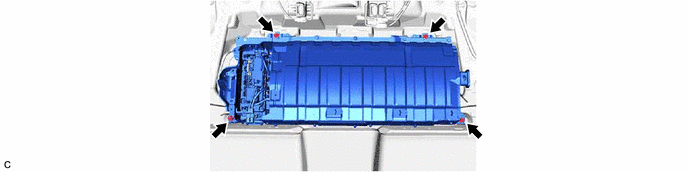

    1. GTY1074733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. PERFORM RECOVERY INSPECTION
    1. Before returning the HV battery, make sure to perform a recovery inspection.

      Refer to RECOVERY INSPECTION [11/2021 - ]
