Removal [11/2021 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY
    Refer to PROCEDURE - Step 8
  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 9

  3. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    NOTE:

    Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.

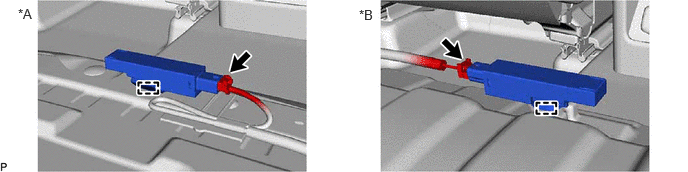

    1. GTY1055449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Gasoline models *B HEV models
