Removal [07/2020 - 05/2023]: Procedure

REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 2
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 4
REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 5
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 7
REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX
Refer to PROCEDURE - Step 5

REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Open

Detach the claw and open the wire harness protector.

Detach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Open the front door glass sub-assembly LH fully to the open position.

Connect the No. 2 front door wire LH connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Insert the upper portion of the front door trim board sub-assembly LH into the front door panel to temporarily set it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Temporarily Set in this Direction

Turn the engine switch to ON.
for Driver Side:
1. Operate the multiplex network master switch assembly and set the front door glass sub-assembly LH to the fully open position.
for Front Passenger Side:
1. Operate the power window regulator switch assembly and set the front door glass sub-assembly RH to the fully open position.
Turn the engine switch off.

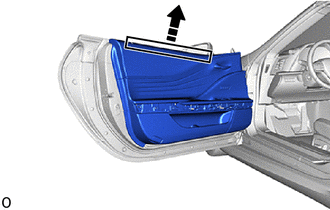

Lift up the front door trim board sub-assembly LH in the direction of the arrow and detach the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

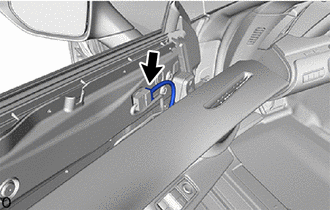

Disconnect the No. 2 front door wire LH connector.

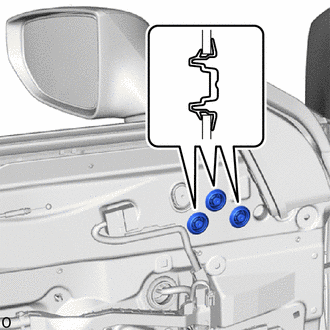

Remove the 3 hole plugs.

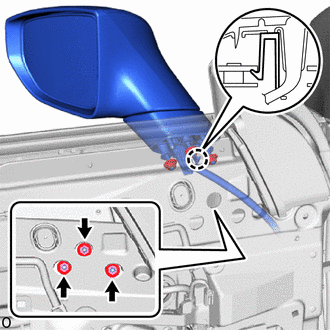

Remove the 3 nuts.

NOTE:

Hold the outer rear view mirror assembly LH with one hand so that it does not drop.
