Removal [12/2023 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL
    1. GTY1212273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT SPOILER NO. 1 BRACKET LH

    HINT:

    The illustration is an example, so the details may differ.

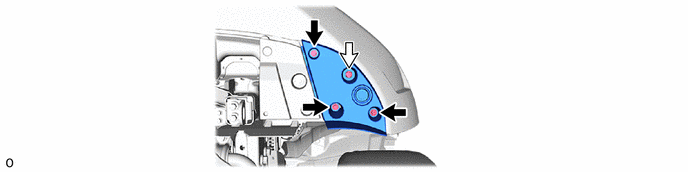

    1. GTY1215585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
  3. REMOVE FRONT SPOILER NO. 1 BRACKET RH
    1. Use the same procedure described for the LH side.
  4. REMOVE NO. 1 ENGINE UNDER COVER (for Off Road Package)

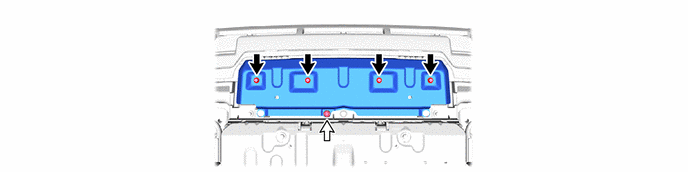

    1. GTY1219428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Clip
  5. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH
    Refer to REMOVAL [12/2023 - ]
  6. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  7. REMOVE FRONT BUMPER ASSEMBLY

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1218462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the front bumper assembly.

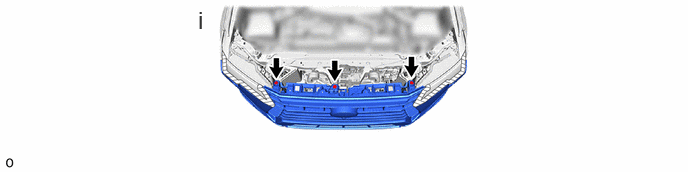

    2. GTY1214328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts.
    3. GTY1214329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip.
    4. Use the same procedure for the other side.
    5. GTY1215159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Screw
      1. Remove the 4 bolts and 6 screws.
    6. GTY1216867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Headlight Cleaner System - -
      Clip Connector
      Headlight Cleaner Hose - -
      1. Remove the clip.
      2. Fold back the front fender liner LH and disconnect the connector.
      3. w/ Headlight Cleaner System:

        Disconnect the headlight cleaner hose and drain washer fluid into a container.

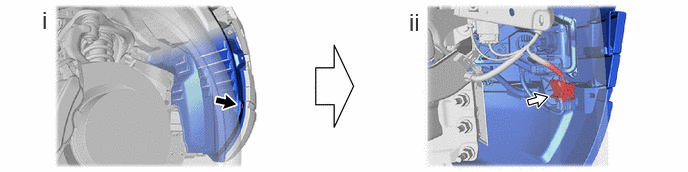

    7. GTY1216993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip Connector
      1. Remove the clip.
      2. Fold back the front fender liner RH and disconnect the connector.

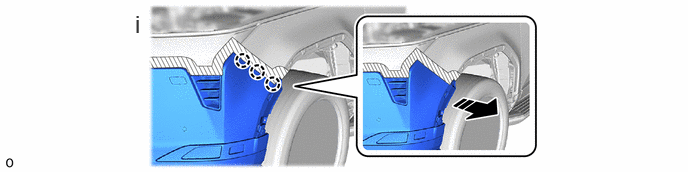

    8. GTY1211962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claw as shown in the illustration.
    9. Use the same procedure for the other side.

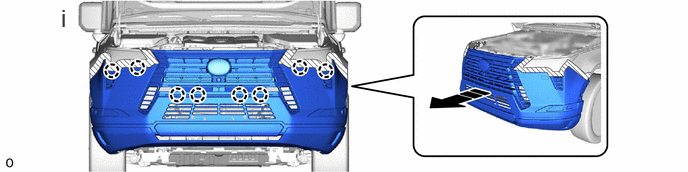

    10. GTY1213931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claw and remove the front bumper assembly as shown in the illustration.
