Removal [12/2023 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 14
  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 15
  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

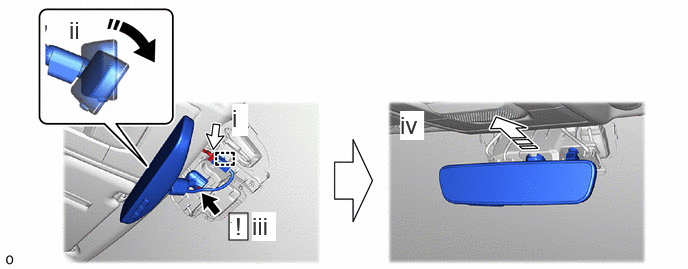

    1. GTY1215981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Tilt in this Direction Remove in this Direction
      Screw Connector
      1. Detach the clamp and disconnect the connector.
      2. Tilt the mirror surface down to the maximum tiltable position.
      3. Using a T20 "TORX" socket wrench, remove the "TORX" screw.
      4. Slide the inner rear view mirror assembly as shown in the illustration and remove the inner rear view mirror assembly.
