Removal [12/2023 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 10

  3. REMOVE INSTRUMENT SIDE PANEL LH
    Refer to PROCEDURE - Step 12
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14

  5. REMOVE SIDE AUTO STEP SWITCH ASSEMBLY

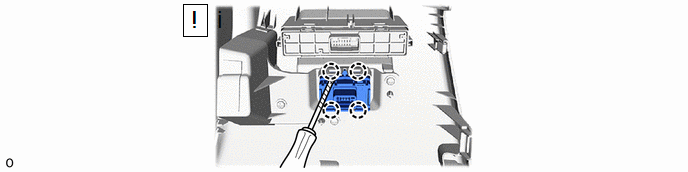

    1. GTY1212947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the side auto step switch assembly.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
