Disassembly [12/2023 - ]: Procedure

NOTE: When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

Refer to PROCEDURE - Step 2

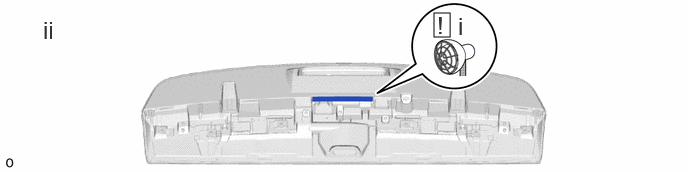

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Heat the adhesive of the rear spoiler No. 1 protector using a heat light.
   2. Remove the 4 rear spoiler No. 1 protectors.

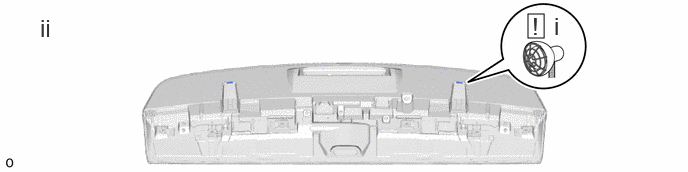

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Heat the adhesive of the rear spoiler No. 1 protector using a heat light.
   2. Remove the 2 rear spoiler No. 1 protectors.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Heat the adhesive of the rear spoiler No. 1 protector using a heat light.
   2. Remove the 2 rear spoiler No. 1 protectors.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Heat the adhesive of the rear spoiler No. 1 protector using a heat light.
   2. Remove the rear spoiler No. 1 protector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
