Removal [12/2023 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

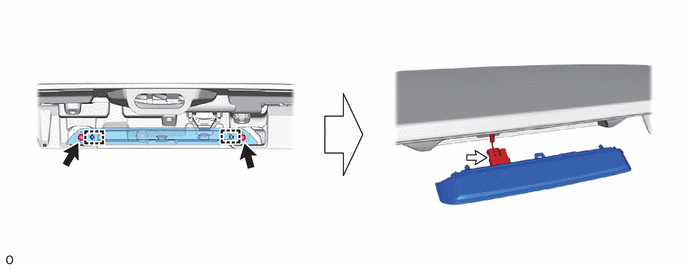

  2. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. GTY1213845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Connector
