Removal [12/2023 - ]: Procedure

  1. PRECAUTION (w/ Hands Free Power Back Door)
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE REAR BUMPER STEP

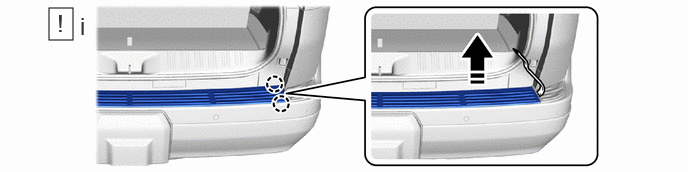

    1. GTY1219089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover B, detach the claw as shown in the illustration.

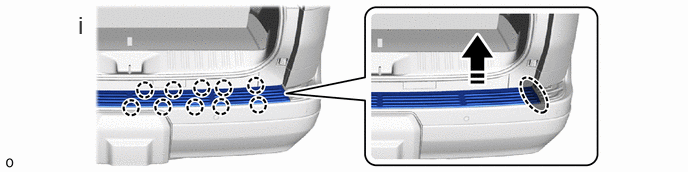

    2. GTY1212936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.
    3. GTY1218812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw and remove the rear bumper step as shown in the illustration.
  4. REMOVE REAR BUMPER BAR PLATE

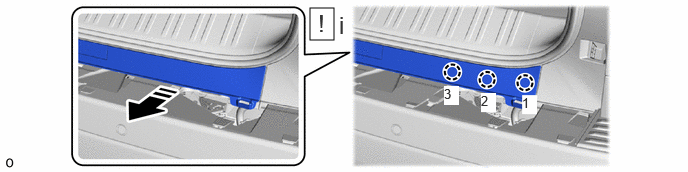

    1. GTY1217149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claws in the order shown in the illustration.
    2. GTY1212352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claws in the order shown in the illustration.
    3. GTY1217961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw and remove the rear bumper bar plate as shown in the illustration.
  5. REMOVE REAR COMBINATION LIGHT COVER LH
    Refer to PROCEDURE - Step 3
  6. REMOVE REAR COMBINATION LIGHT COVER RH
    1. Use the same procedure described for the LH side.
  7. REMOVE REAR BUMPER CORNER EXTENSION LH

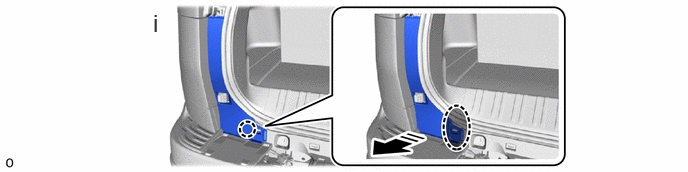

    1. GTY1211001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.

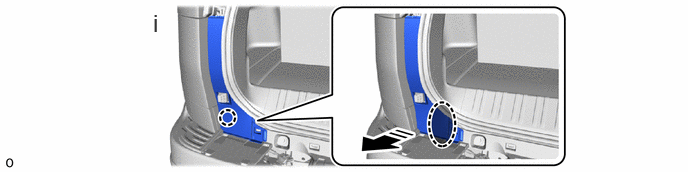

    2. GTY1219373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.

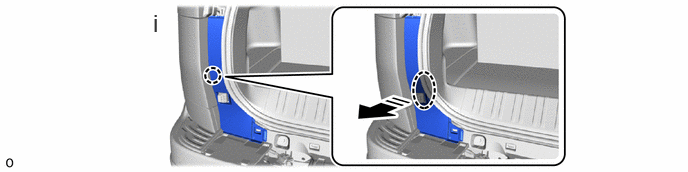

    3. GTY1214614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.
    4. GTY1212697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw and remove the rear bumper corner extension LH as shown in the illustration.
  8. REMOVE REAR BUMPER CORNER EXTENSION RH
    1. Use the same procedure described for the LH side.
  9. REMOVE REAR BUMPER FILLER LH

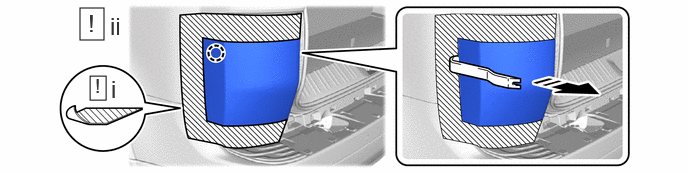

    1. GTY1210963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Put protective tape around the rear bumper filler LH.
      2. Using a moulding remover B, detach the claw as shown in the illustration.

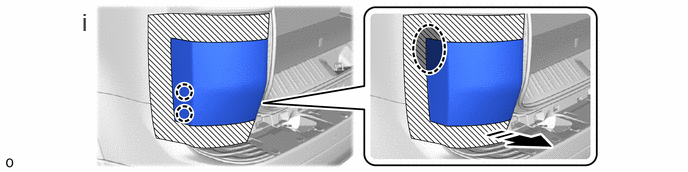

    2. GTY1212280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.
    3. GTY1212276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw as shown in the illustration.

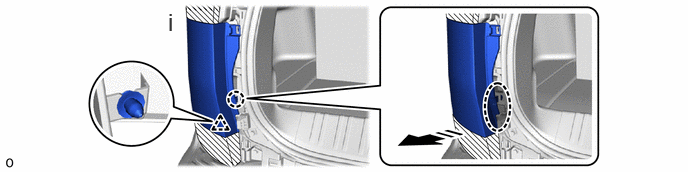

    4. GTY1217670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the claw and clip and remove the rear bumper filler LH as shown in the illustration.
  10. REMOVE REAR BUMPER FILLER RH
    1. Use the same procedure described for the LH side.
  11. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)
    See step  1
  12. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)
    1. Use the same procedure described for the LH side.
  13. REMOVE REAR BUMPER SIDE SEAL LH
    Refer to PROCEDURE - Step 3
  14. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure described for the LH side.
  15. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1215967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip
      1. Put protective tape around the quarter outside moulding sub-assembly LH.
      2. Using a 4 mm hexagon socket wrench, remove the screw.
      3. Remove the clip.
    2. GTY1210856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the claw.

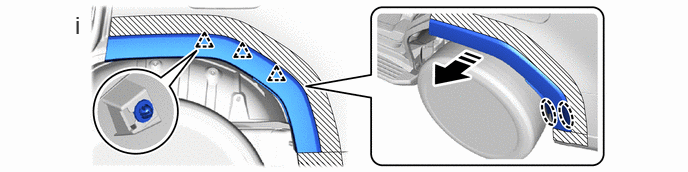

    3. GTY1218331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the clip and remove part of quarter outside moulding sub-assembly LH as shown in the illustration.
  16. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  17. REMOVE REAR BUMPER ASSEMBLY

    HINT:

    The illustration is an example, so the details may differ.

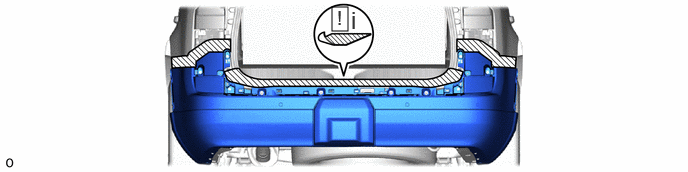

    1. GTY1214684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the rear bumper assembly.

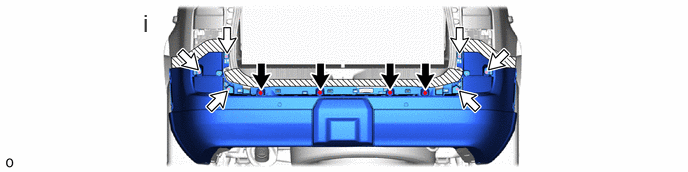

    2. GTY1215356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Screw
      1. Remove the 4 bolts (A) and 6 screws.
    3. GTY1213843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (B) Screw
      1. Remove the 2 bolts (B) and 6 screws.

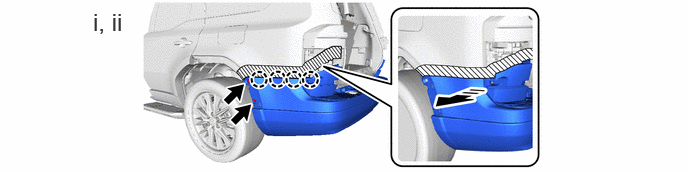

    4. GTY1213046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 2 clips.
      2. Detach the claw as shown in the illustration.
    5. Use the same procedure for the other side.

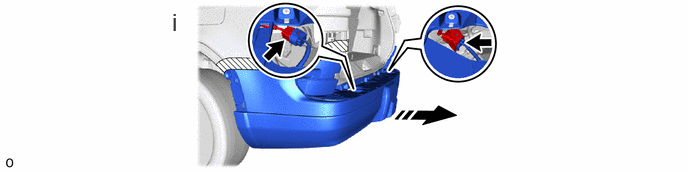

    6. GTY1211043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the 2 connectors and remove the rear bumper assembly as shown in the illustration.
