Removal [12/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here		Remove in this Direction (1)
   	Remove in this Direction (2)	-	-

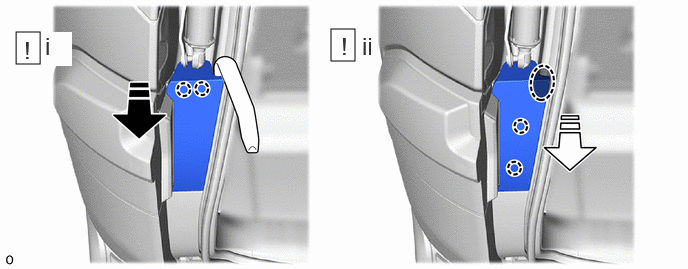

   1. Using moulding remover A, detach the claw as shown in the illustration.
   2. Place your hands at the positions shown in the illustration and detach the claw and remove the rear combination light cover LH as shown in the illustration.

Refer to PROCEDURE - Step 7

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Guide	*b	Pin
   	Place Hand Here		Remove in this Direction
   	Screw		Connector

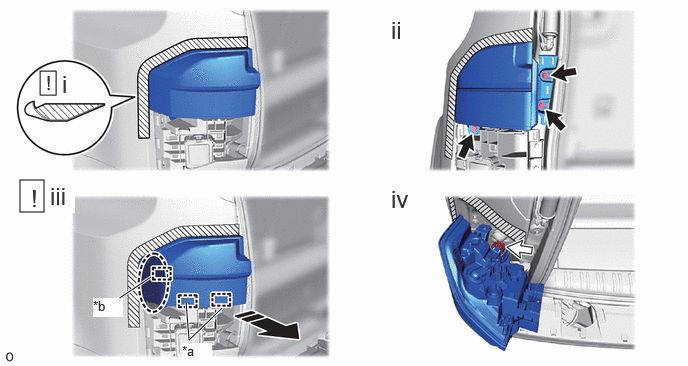

   1. Apply the protective tape around the rear combination assembly LH.
   2. Remove the 3 screws.
   3. Place your hands at the positions shown in the illustration and detach the claw, pin and guide in the removal direction and pull the rear combination light assembly LH.
   4. Disconnect the connector and remove the rear combination light assembly LH.
