Removal [12/2023 - ]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 27

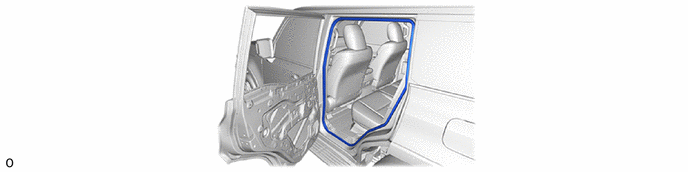

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. GTY1217551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
