Removal [12/2023 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 10

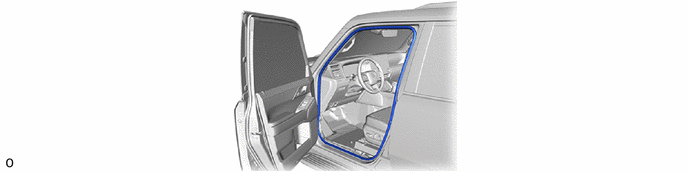

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. GTY1217887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
