Removal [12/2023 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL (w/o Grille Shutter)

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR SHUTTER ASSEMBLY (w/ Grille Shutter)

    Refer to REMOVAL [12/2023 - ]

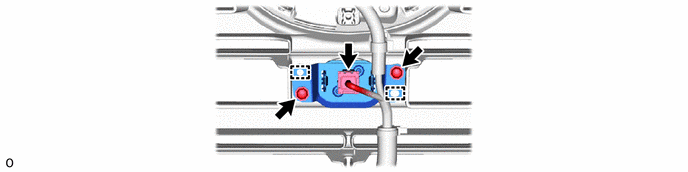

  3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. GTY1215550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
