Installation [10/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front No. 1 Disc Brake Anti-Squeal Shim	*2	Front Disc Brake Pad Wear Indicator Plate
   *3	Front Disc Brake Pad	-	-
   	Brake Shim Grease (Part No. 08887-80409)	-	-

   1. Apply brake shim grease (Part No. 08887-80409) to the front disc brake pads and front No. 1 disc brake anti-squeal shims at the positions shown in the illustration.
      NOTE:

      Keep the lining surface of the front disc brake pad free from grease.

   2. Install the front No. 1 disc brake anti-squeal shim to each front disc brake pad.
      NOTE:

      When replacing the front disc brake pads with new ones, make sure to replace the front disc brake anti-squeal shim kit at the same time.

   3. Install a new front disc brake pad wear indicator plate to front disc brake pad inner side.

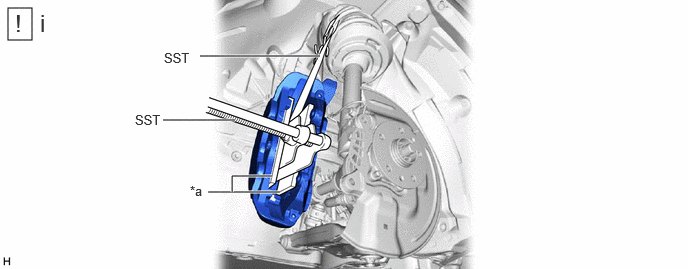

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Wooden Block

   -

   -

   1. Using SST and a wooden block, push back the front disc brake pistons.
      • SST: 09719-77020
      WARNING:

      Be careful not to get pinched by the disc brake cylinder assembly or other parts when installing the front disc brake pads.

      NOTE:

      • Make sure the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the front disc brake pistons.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the 2 front disc brake pads to the disc brake cylinder assembly.
      NOTE:

      When replacing the front disc brake pads with new ones, make sure to replace the front disc brake pad wear indicator plate at the same time.

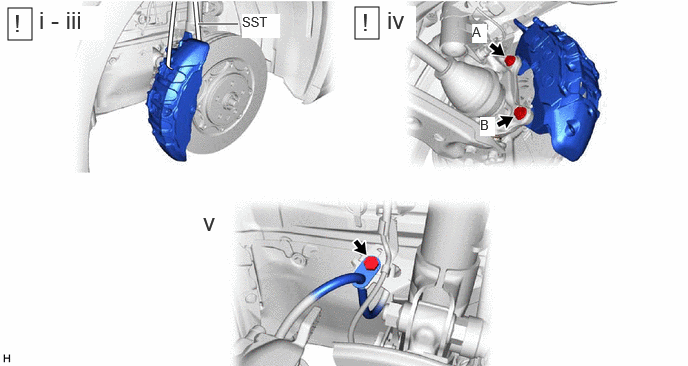

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the front disc.

      Refer to PROCEDURE - Step 3

   2. Temporarily install the disc brake cylinder assembly with the bolt on the lower side of the disc brake cylinder assembly.
      NOTE:

      Do not apply excessive force to the flexible hose.

   3. Remove the SST.
   4. Install the disc brake cylinder assembly with the bolt (A) and bolt (B).

      Torque: 235 N.m (2396 kgf/cm, 173 ft.lbf)

   5. Install the flexible hose to the front flexible hose bracket with the bolt.

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

except Gasoline Model: Refer to ON-VEHICLE INSPECTION [10/2022 - ]

for Gasoline Model: Refer to ON-VEHICLE INSPECTION [10/2022 - ]

Refer to INSTALLATION [10/2022 - ]

Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2022 - 08/2023] , or refer to AUTOMATIC LEARNING CHART [08/2023 - ]
