Removal [08/2023 - ]: Procedure
- PRECAUTION NOTE:
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- REMOVE BATTERY SERVICE COVER PLATE (except Gasoline Model)
Refer to PROCEDURE - Step 3
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for T24A-FTS Gasoline Model:
Refer to PROCEDURE - Step 2
- for T24A-FTS 1Motor-HEV Model:
Refer to PROCEDURE - Step 3
- for A25A-FXS:
Refer to PROCEDURE - Step 3
- for T24A-FTS Gasoline Model:
- REMOVE REAR BUMPER ASSEMBLY
- except Sport Package:
Refer to REMOVAL [08/2023 - ]
- for Sport Package:
Refer to REMOVAL [08/2023 - ]
- except Sport Package:

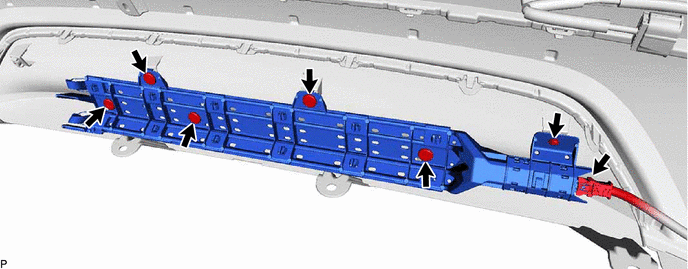

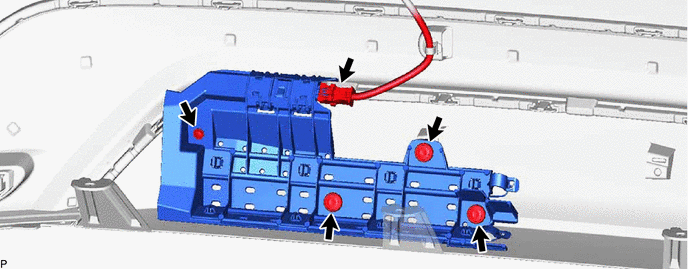

- REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY
