Removal [10/2022 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY LH

    for LED Type Turn Signal Light:

    Refer to REMOVAL [10/2022 - ]

    for Bulb Type Turn Signal Light:

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE HEADLIGHT ASSEMBLY RH
    1. Use the same procedure for the LH side.
  3. REMOVE HOOD SUPPORT TENSION SPRING
    1. GTY1137940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the hood support tension spring.
      2. Use the same procedure for the opposite side.

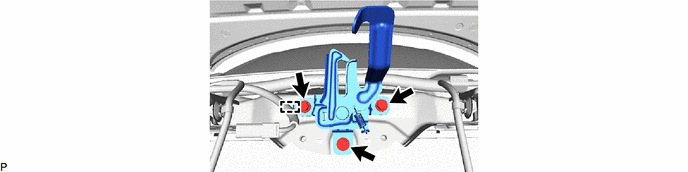

  4. REMOVE HOOD AUXILIARY CATCH HOOK ASSEMBLY
    1. GTY1137021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 16 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 17 [08/2023 - ]

  6. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 17 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 18 [08/2023 - ]

  7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 10 [10/2024 - ]

  8. REMOVE WINDSHIELD WIPER MOTOR AND LINK

    Refer to REMOVAL [10/2022 - ]

  9. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]

  10. REMOVE HOOD LOCK CONTROL COVER
    1. GTY1136500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY
    1. GTY1136502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

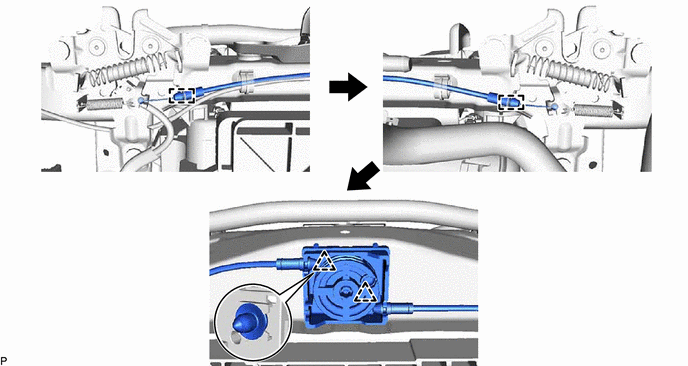

  12. REMOVE HOOD LOCK CONTROL JUNCTION ASSEMBLY
    1. GTY1134163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HOOD LOCK ASSEMBLY LH
    1. GTY1134066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

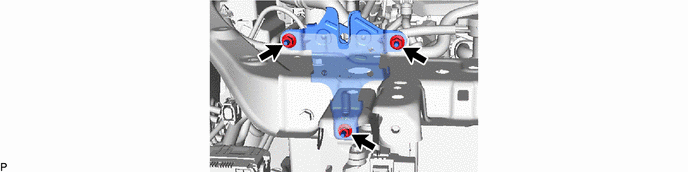

  14. REMOVE HOOD LOCK ASSEMBLY
    1. GTY1137019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. GTY1136519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. GTY1052673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

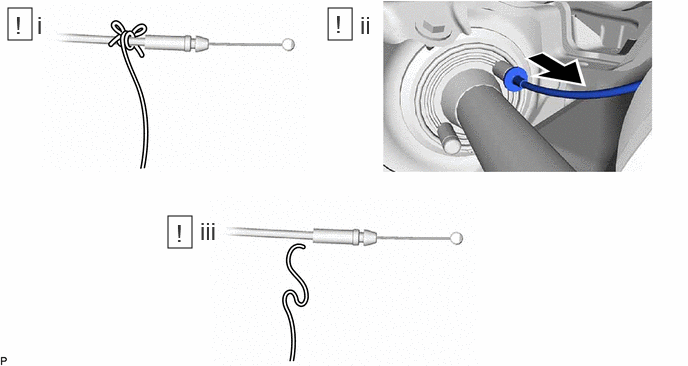

  17. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. GTY1135009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Tie a string to the hood lock control lever sub-assembly side end of the hood lock control cable assembly.

        HINT:

        Use a length of string long enough to pass through the engine compartment.

      2. Pull the hood lock control cable assembly through the grommet.

        HINT:

        Leave the string inside the grommet.

      3. Disconnect the string from the hood lock control cable assembly.
    2. GTY1134761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly - -
      *a Bolt - -
      1. Remove the hood lock control cable assembly.

        1. Disengage each clamp as shown in the illustration.

        2. Pull the hood lock control cable assembly from the engine compartment to remove it.
