Removal [08/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. REMOVE BATTERY SERVICE COVER PLATE (except Gasoline Model)
    1. for T24A-FTS 1Motor-HEV Model:

      Refer to PROCEDURE - Step 2

    2. for A25A-FXS:

      Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. for T24A-FTS Gasoline Model:

      Refer to PROCEDURE - Step 2

    2. for T24A-FTS 1Motor-HEV Model:

      Refer to PROCEDURE - Step 3

    3. for A25A-FXS:

      Refer to PROCEDURE - Step 3

  4. REMOVE DOOR ARMREST COVER

    Refer to PROCEDURE - Step 4 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 4 [10/2024 - ]

  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    Refer to PROCEDURE - Step 5 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 5 [10/2024 - ]
  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    Refer to PROCEDURE - Step 6 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 6 [10/2024 - ]
  7. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  8. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 8 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 8 [10/2024 - ]
  9. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
    Refer to PROCEDURE - Step 15 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 15 [10/2024 - ]
  10. REMOVE FRONT DOOR WEATHERSTRIP CLIP
    Refer to PROCEDURE - Step 20 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 20 [10/2024 - ]
  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 21 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 21 [10/2024 - ]

  12. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 24 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 24 [10/2024 - ]

  13. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 25 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 29 [10/2024 - ]

  14. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    Refer to PROCEDURE - Step 26 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 26 [10/2024 - ]
  15. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 28 [10/2024 - ]

  16. REMOVE HOLE PLUG (w/ Lock Cylinder)

    Refer to PROCEDURE - Step 25 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 29 [10/2024 - ]

  17. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (w/ Lock Cylinder)

    Refer to PROCEDURE - Step 36 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 36 [10/2024 - ]

  18. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (w/ Lock Cylinder)

    Refer to PROCEDURE - Step 38 [08/2023 - 10/2024] , or refer to PROCEDURE - Step 38 [10/2024 - ]

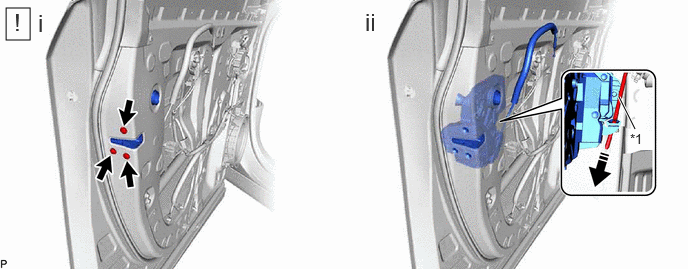

  19. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY WITH COVER
    1. GTY1122647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod - -
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      2. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly with cable.

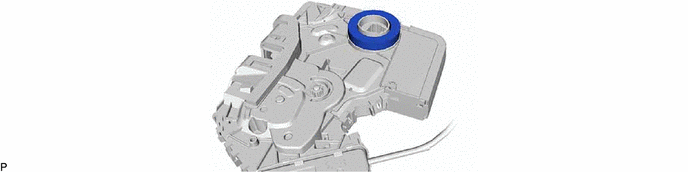

  20. REMOVE DOOR LOCK WIRING HARNESS SEAL

    HINT:

    When reusing the front door lock with motor assembly.

    1. GTY1126836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

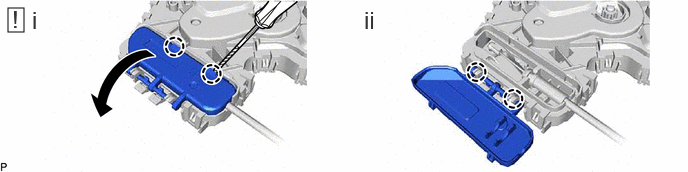

  21. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY
    1. GTY1124877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      2. Disengage the 2 claws to remove the front door lock cover sub-assembly.

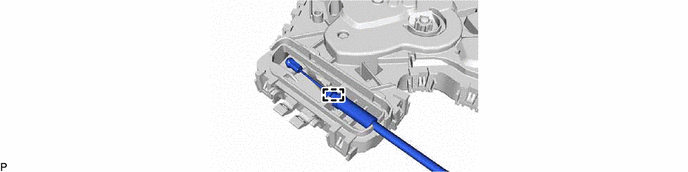

  22. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. GTY1126837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
