Removal [08/2023 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE COVER PLATE (except Gasoline Model)

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX (for Gasoline Model)

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 6

  7. REMOVE JUNCTION BLOCK SERVICE COVER (except Gasoline Model)

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR FLOOR BOARD REAR LH

    Refer to PROCEDURE - Step 8

  9. REMOVE JUNCTION BLOCK SERVICE COVER LH

    Refer to PROCEDURE - Step 9

  10. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 11

  11. SEPARATE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 13

  12. SEPARATE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  13. REMOVE DECK BOARD SET SUPPORT LH

    Refer to PROCEDURE - Step 14

  14. REMOVE DECK BOARD SET SUPPORT

    Refer to PROCEDURE - Step 15

  15. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [08/2023 - ]

  16. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 42

  17. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 21

  18. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 22

  19. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 28

  20. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 38

  21. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 41

  22. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 43
  23. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 44

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    Refer to PROCEDURE - Step 46

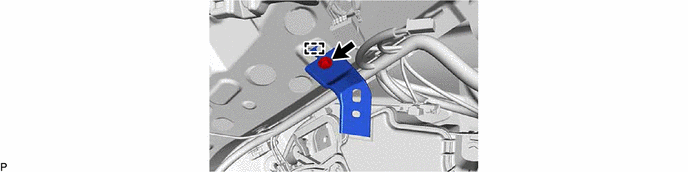

  26. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM BRACKET
    1. GTY1136410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

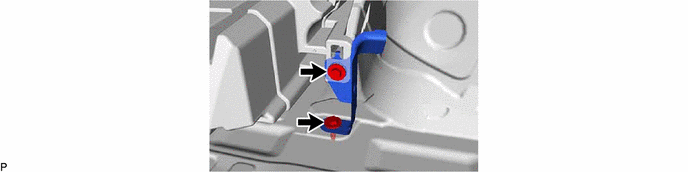

  27. REMOVE NO. 1 SPEAKER BRACKET REAR
    1. GTY1136407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

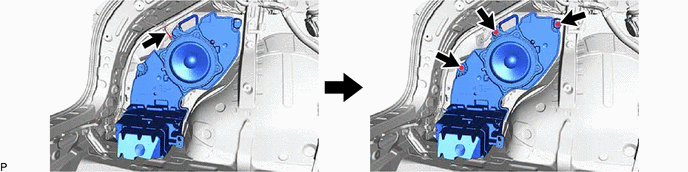

  28. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX
    1. GTY1136408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
