Removal [10/2022 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT SIDE PANEL (for Side)
    Refer to PROCEDURE - Step 11 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - ]
  2. REMOVE FRONT PILLAR GARNISH ASSEMBLY (for Side)
    Refer to PROCEDURE - Step 26 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 26 [08/2023 - ]
  3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
    Refer to PROCEDURE - Step 27 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 27 [08/2023 - ]

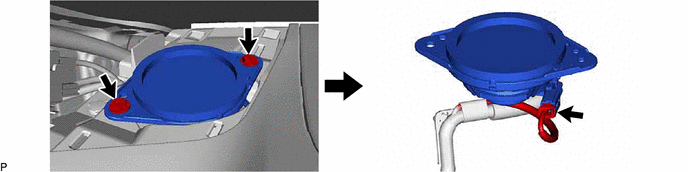

  4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Side)
    1. GTY1136657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
    Refer to PROCEDURE - Step 31 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 31 [08/2023 - ]

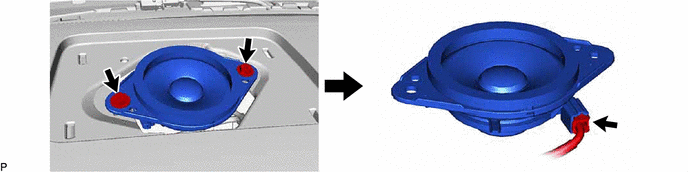

  6. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for Center)
    1. GTY1136659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
