Removal [10/2022 - ]: Procedure

Refer to REMOVAL [10/2022 - ]

Refer to PROCEDURE - Step 2

1. Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

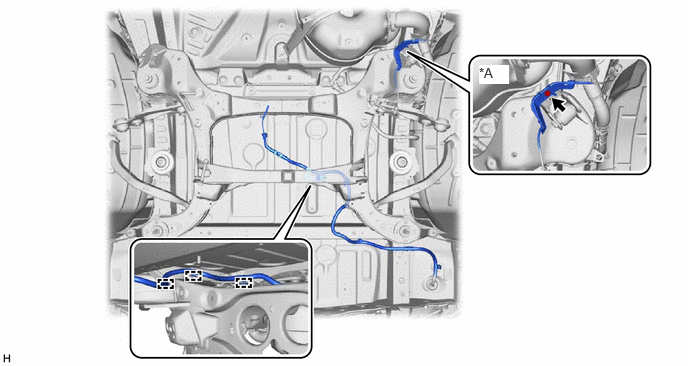

   *A

   w/ Height Control Sensor

   -

   -

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

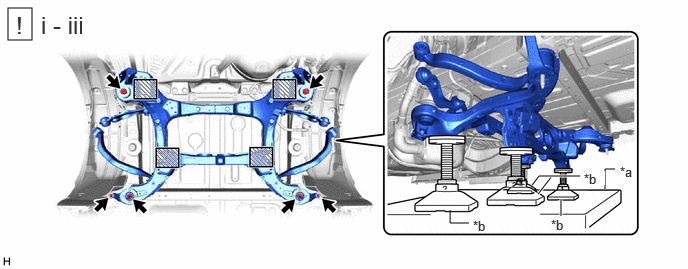

   *a	Engine Lifter	*b	Attachment
   	Attachment Placement Location	-	-

   1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:

      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NOTE:

      Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

   2. Remove the 2 bolts, 4 nuts, rear suspension member rear lower brace LH and rear suspension member rear lower brace RH.
   3. Slowly lower the rear suspension member sub-assembly.
      NOTE:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

1. Perform the same procedure as for the LH side.

1. Perform the same procedure as for the LH side.

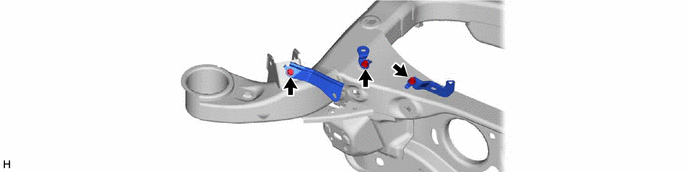

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bend Portion	*b	Hold
   	Turn	-	-

   1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion LH rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

   2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09954-04010
        4. 09955-04061
        5. 09958-04011
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

   3. Using SST, remove the rear suspension member front body mounting cushion LH while applying lubricant into the clearance between the rear suspension member front body mounting cushion LH and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09954-04010
        4. 09955-04061
        5. 09958-04011
      NOTE:

      • Set the claws of SST into the rear suspension member sub-assembly securely as shown in the illustration.
      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member front body mounting cushion may fly out.
      • The rear suspension member front body mounting cushion cannot be reused.

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold	-	-
   	Turn	-	-

   1. Install SST as shown in the illustration.
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60011
        1. 09951-00330
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

   2. Using SST, remove the rear suspension member rear body mount cushion LH while applying lubricant into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60011
        1. 09951-00330
      NOTE:

      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member rear body mount cushion LH may fly out.
      • The rear suspension member rear body mount cushion LH cannot be reused.

1. Perform the same procedure as for the LH side.
