Removal [10/2022 - 08/2023]: Procedure

  1. REMOVE REAR COIL SPRING

    Refer to REMOVAL [10/2022 - 08/2023]

  2. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  8

  3. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

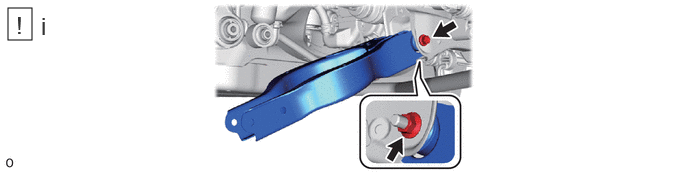

    1. GTY1126431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, nut and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  4. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

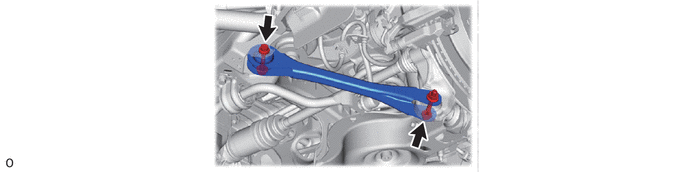

    1. GTY1126254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
