Removal [10/2022 - ]: Procedure

  1. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 5

  7. REMOVE TAIL EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE LOWER MAIN MUFFLER HEAT INSULATOR
    1. GTY1125932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 2

  10. REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET

    Refer to PROCEDURE - Step 46

  11. REMOVE FRONT FLOOR COVER RH
    Refer to PROCEDURE - Step 47
  12. REMOVE ENGINE SERVICE COVER ASSEMBLY

    Refer to PROCEDURE - Step 48

  13. REMOVE REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 49

  14. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 22
  15. REMOVE AIR CLEANER ASSEMBLY WITH NO. 1 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 10

  16. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 11

  17. REMOVE INTAKE AIR CONNECTOR BRACKET

    Refer to PROCEDURE - Step 15

  18. REMOVE BATTERY COVER LOCK STRIKER
    Refer to PROCEDURE - Step 16
  19. REMOVE INVERTER TERMINAL COVER
    Refer to PROCEDURE - Step 17
  20. CHECK TERMINAL VOLTAGE
    Refer to PROCEDURE - Step 18
  21. REMOVE INVERTER TERMINAL GASKET
    Refer to PROCEDURE - Step 31
  22. INSTALL INVERTER TERMINAL COVER
    Refer to PROCEDURE - Step 19
  23. INSTALL BATTERY COVER LOCK STRIKER
    Refer to PROCEDURE - Step 10
  24. INSTALL INTAKE AIR CONNECTOR BRACKET

    Refer to PROCEDURE - Step 15

  25. INSTALL AIR CLEANER HOSE ASSEMBLY
    Refer to PROCEDURE - Step 19
  26. INSTALL AIR CLEANER ASSEMBLY WITH NO. 1 AIR CLEANER HOSE
    Refer to PROCEDURE - Step 20
  27. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 56
  28. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

    Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]

  29. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 18 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 18 [08/2023 - ]

  30. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 20 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 21 [08/2023 - ]

  31. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.
  32. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 21 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 22 [08/2023 - ]

  33. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Use the same procedure as for the No. 3 battery service cover board.
  34. REMOVE BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 33

  35. REMOVE FOLD SEAT CONTROL ECU (for Power Seat)

    Refer to PROCEDURE - Step 13 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 13 [08/2023 - ]

  36. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  37. REMOVE NO. 2 FLOOR MAT

    Refer to PROCEDURE - Step 36

  38. REMOVE UPPER HV BATTERY COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  39. REMOVE NO. 6 HV BATTERY SHIELD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 24
  40. DISCONNECT NO. 2 HV FLOOR UNDER WIRE
    Refer to PROCEDURE - Step 39
  41. DISCONNECT HV BATTERY CHARGER WIRE
    Refer to PROCEDURE - Step 44
  42. REMOVE REAR DRIVE SHAFT ASSEMBLY LH

    Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]

  43. REMOVE REAR DRIVE SHAFT ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  44. REMOVE REAR STABILIZER BAR

    Refer to PROCEDURE - Step 6

  45. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]

  46. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  47. REMOVE REAR SHOCK ABSORBER ASSEMBLY LH

    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]

  48. REMOVE REAR SHOCK ABSORBER ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  49. DISCONNECT FRAME WIRE

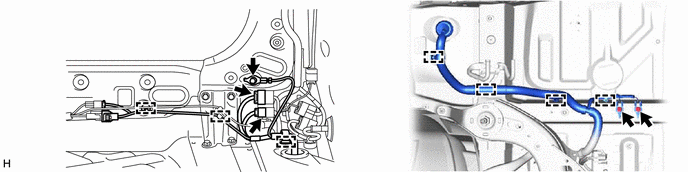

    1. GTY1129081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. SEPARATE NO. 1 INVERTER COOLING HOSE ASSEMBLY

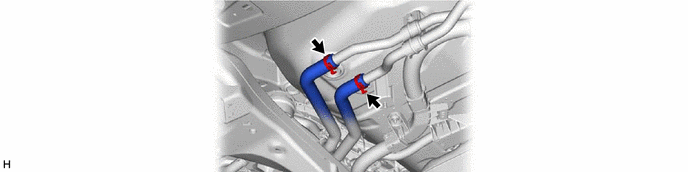

    1. GTY1125933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. SEPARATE FRAME WIRE (w/ Height Control Sensor)

    See step  9

  52. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 6

  53. REMOVE REAR STEERING LINK ASSEMBLY

    Refer to PROCEDURE - Step 7

  54. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

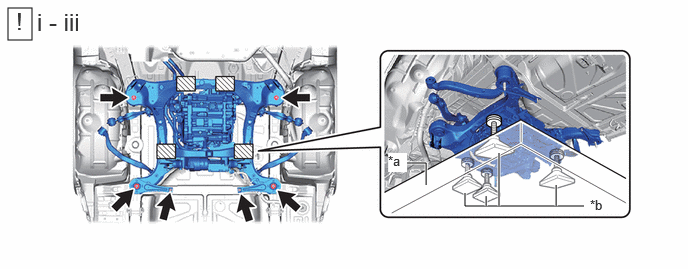

    1. GTY1126789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter *b Attachment
      Attachment Placement Location - -
      1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
        WARNING:
        • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
        GTY1127482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

      2. Remove the 2 bolts, 4 nuts, rear suspension member rear lower brace LH and rear suspension member rear lower brace RH.
      3. Slowly lower the rear suspension member sub-assembly.
        NOTE:

        When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  55. DISCONNECT FRAME WIRE

    Refer to PROCEDURE - Step 2

  56. REMOVE REAR TRANSAXLE WITH MOTOR AND INVERTER ASSEMBLY
    Refer to PROCEDURE - Step 3
  57. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]
  58. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  59. REMOVE REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]
  60. REMOVE REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  61. REMOVE REAR SUSPENSION MENBER LOWER STOPPER RETAINER LH

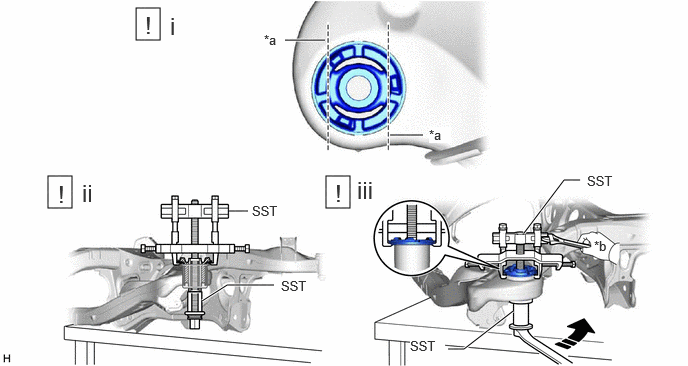

    1. GTY1126064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH
  63. REMOVE REAR LOWER REAR SUSPENSION MEMBER STOPPER
    1. GTY1123942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE WIRE HARNESS CLAMP BRACKET

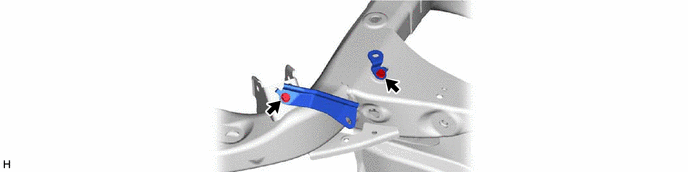

    1. GTY1125935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH
    1. GTY1124512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion *b Hold
      Turn - -
      1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion LH rib.
        NOTE:

        Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      2. Install SST as shown in the illustration.
        • SST: 09830-10010
          1. 09830-01010
          2. 09830-01040
          3. 09830-01050
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09954-04010
          4. 09955-04061
          5. 09958-04011
        NOTE:

        Apply molybdenum grease to the center bolt of SST before use.

      3. Using SST, remove the rear suspension member front body mounting cushion LH while applying lubricant into the clearance between the rear suspension member front body mounting cushion LH and the rear suspension member sub-assembly.
        • SST: 09830-10010
          1. 09830-01010
          2. 09830-01040
          3. 09830-01050
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09954-04010
          4. 09955-04061
          5. 09958-04011
        NOTE:
        • Set the claws of SST into the rear suspension member sub-assembly securely as shown in the illustration.
        • Tighten SST slowly and evenly.
        • Be careful as the rear suspension member front body mounting cushion LH may fly out.
        • The rear suspension member front body mounting cushion LH cannot be reused.
  66. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
    1. Perform the same procedure as for the LH side.
  67. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. GTY1125963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold - -
      Turn - -
      1. Install SST and apply anti-rust lubricant around the outside edge of the rear suspension member rear body mount cushion LH as shown in the illustration.
        • SST: 09950-00020
        • SST: 09950-00030
        • SST: 09950-60011
          1. 09951-00330
        NOTE:

        Apply molybdenum grease to the center bolt of SST before use.

      2. Using SST, remove the rear suspension member rear body mount cushion LH from the rear suspension member sub-assembly while applying anti-rust lubricant in the gap between the rear suspension member rear body mount cushion and rear suspension member sub-assembly.
        • SST: 09950-00020
        • SST: 09950-00030
        • SST: 09950-60011
          1. 09951-00330
        NOTE:
        • The rear suspension member rear body mount cushion may jump out quickly.
        • Do not reuse the removed rear suspension member rear body mount cushion.
  68. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
    1. Perform the same procedure as for the LH side.
  69. REMOVE REAR MOTOR MOUNTING INSULATOR

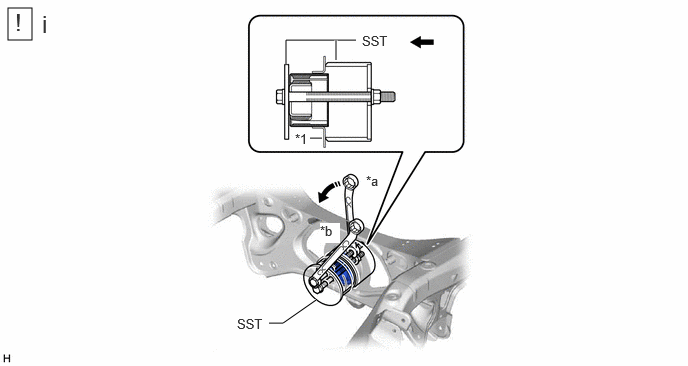

    1. GTY1125956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear suspension member sub-assembly - -
      *a Turn *b Hold
      Front Turning Direction
      1. Using SST, remove the rear motor mounting insulator from the rear suspension member sub-assembly.
        • SST: 09570-48010
        NOTE:
        • When removing the rear motor mounting insulator, do not allow SST (09570-48010) to contact the rear suspension member sub-assembly.
        • Apply oils and fats to the threads of SST bolts before use.
        • Make sure you have the correct combination of SST.
        • Make sure that the SST is in contact with the entire circumference of the seating surface of the rear motor mounting insulator.
        • Install the SST so that the SST bolt do not tilt.
