Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. REMOVE BATTERY SERVICE COVER PLATE (for HEV Model)

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If an airbag deploys for any reason, it may cause a serious injury.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    for A25A-FKS:

    Refer to PROCEDURE - Step 2

    for A24A-FTS:

    Refer to PROCEDURE - Step 2

    for A25A-FXS:

    Refer to PROCEDURE - Step 3

  4. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 3

  7. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER (for RH Side)

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)
    for Manual Seat:
    Refer to PROCEDURE - Step 6
    for Power Seat:
    Refer to PROCEDURE - Step 9
  10. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)
    for Manual Seat:
    Refer to PROCEDURE - Step 7
    for Power Seat:
    Refer to PROCEDURE - Step 10
  11. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    for Manual Seat:
    Refer to PROCEDURE - Step 8
    for Power Seat:
    Refer to PROCEDURE - Step 11
  12. REMOVE REAR SEAT CUSHION LOCK HOOK

    for Manual Seat:

    Refer to PROCEDURE - Step 9

    for Power Seat:

    Refer to PROCEDURE - Step 12

  13. REMOVE REAR DECK FLOOR BOX (w/o Spare Tire)

    Refer to PROCEDURE - Step 7

  14. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 8

  15. REMOVE JUNCTION BLOCK SERVICE COVER (for HEV Model)

    Refer to PROCEDURE - Step 9

  16. REMOVE REAR FLOOR BOARD REAR LH

    Refer to PROCEDURE - Step 10

  17. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 11

  18. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 12

  19. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 34

  20. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 21

  21. REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HEV Model)

    Refer to PROCEDURE - Step 23

  22. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

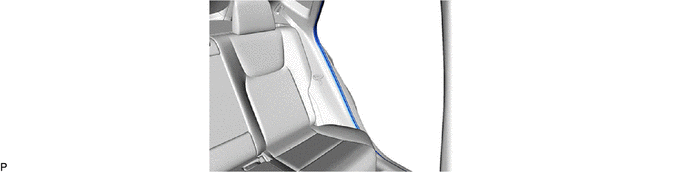

    1. GTY1055903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 1 SIDE TRIM BASE COVER

    Refer to PROCEDURE - Step 35

  24. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 37

  25. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 39
  26. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 40

  27. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    Refer to PROCEDURE - Step 41
  28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    Refer to PROCEDURE - Step 42
  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    Refer to PROCEDURE - Step 43
  30. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 35

  31. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

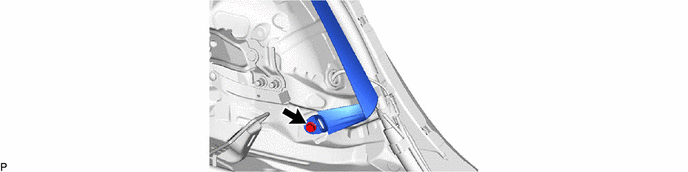

    1. GTY1055902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 44

  33. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

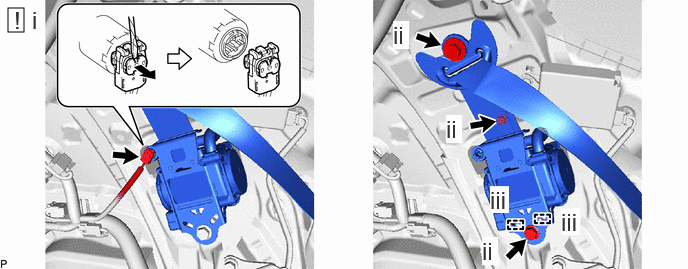

    1. GTY1056622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      2. Remove the 3 bolts.
      3. Disengage the 2 guides.
