Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE REAR PROPELLER SHAFT ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE TRANSMISSION UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE TRANSFER HEAT INSULATOR

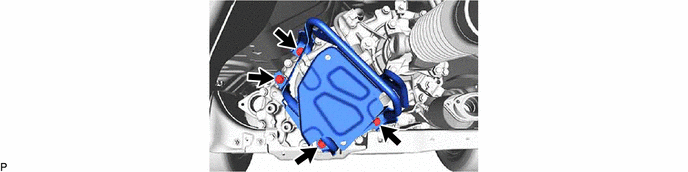

    1. GTY1061600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE LOWER TRANSFER CASE PROTECTOR

    Refer to PROCEDURE - Step 2

  6. DRAIN TRANSFER OIL

    Refer to PROCEDURE - Step 3

  7. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

    HINT:

    Support the automatic transmission assembly with a transmission jack so that it is stable.

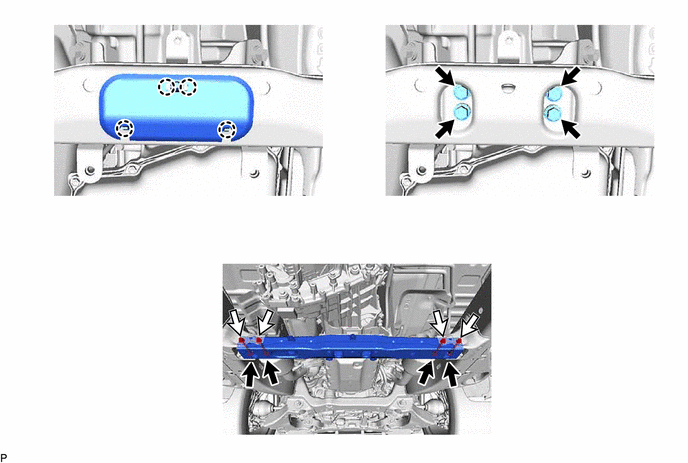

  8. REMOVE NO. 3 FRAME CROSSMEMBER ASSEMBLY
    1. GTY1060611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
  9. REMOVE REAR ENGINE MOUNTING INSULATOR

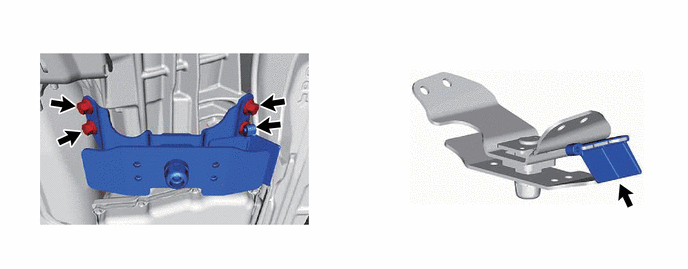

    1. GTY1064534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT WIRE HARNESS CLAMP BRACKET

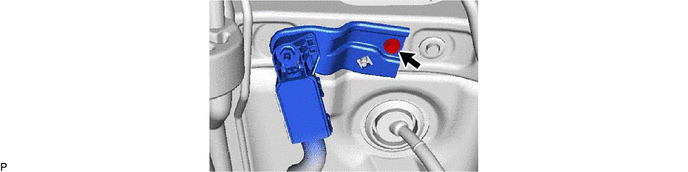

    1. GTY1059491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

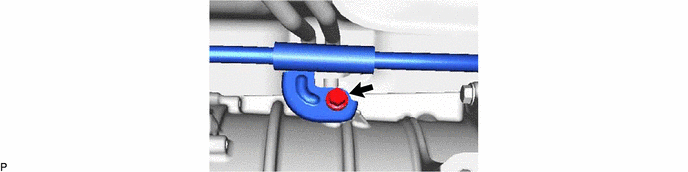

    1. GTY1059492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT WIRE HARNESS AND TRANSFER BREATHER HOSE SUB-ASSEMBLY
    NOTE:
    • The wire harness and transfer breather hose sub-assembly can be disconnected without tilting the transfer assembly.
    • When titling the transfer assembly, do not tilt it excessively to allow the cooling fan and fan shroud to contact each other.

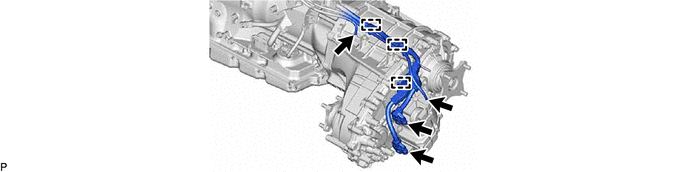

    1. GTY1059494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSFER ASSEMBLY
    NOTE:
    • The transfer assembly can be removed without being tilted.
    • When titling the transfer assembly, do not tilt it excessively to allow the cooling fan and fan shroud to contact each other.

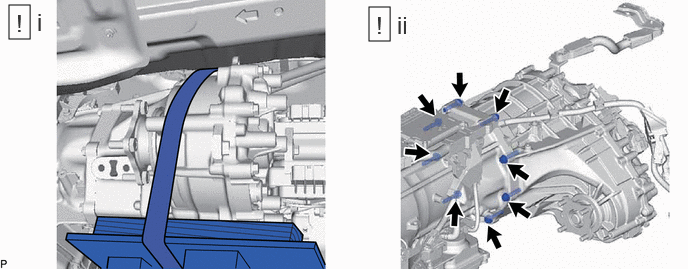

    1. GTY1064392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a transmission jack, plate lift attachments and a belt sling, etc., support the transfer assembly.
        NOTE:

        Using a belt sling, etc., secure the transfer assembly to the transmission jack to prevent it from falling.

      2. Remove the 8 bolts and transfer assembly from the automatic transmission assembly.
        NOTE:
        • Check the center of gravity while removing the transfer assembly.
        • Do not drop the transfer assembly.
  14. REMOVE NO. 2 GROUND WIRE

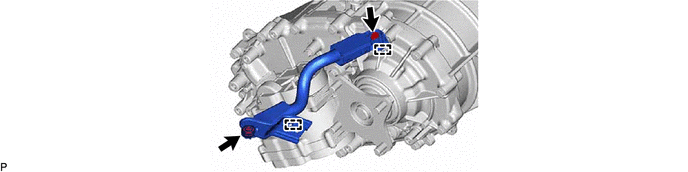

    1. GTY1060237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE WIRE HARNESS CLAMP BRACKET

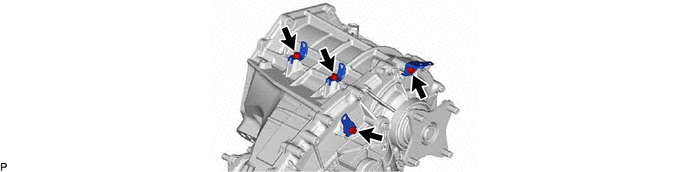

    1. GTY1059495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
