Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [12/2021 - ]
  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    NOTE:

    Perform the customization settings before disconnecting the cable from the negative (-) auxiliary battery terminal. Otherwise, removal of the steering column cover becomes difficult.

    HINT: Record the customization settings before changing them.
    1. Perform the customization settings.

      Refer to CUSTOMIZE PARAMETERS [12/2021 - ]

    2. Move the steering wheel to its lowest and rearmost position.

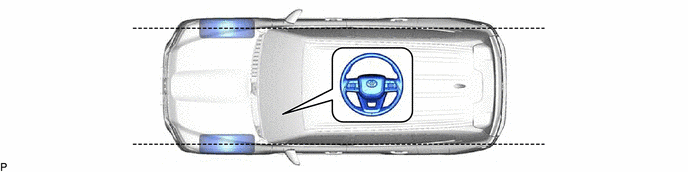

  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
    1. GTY1060845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

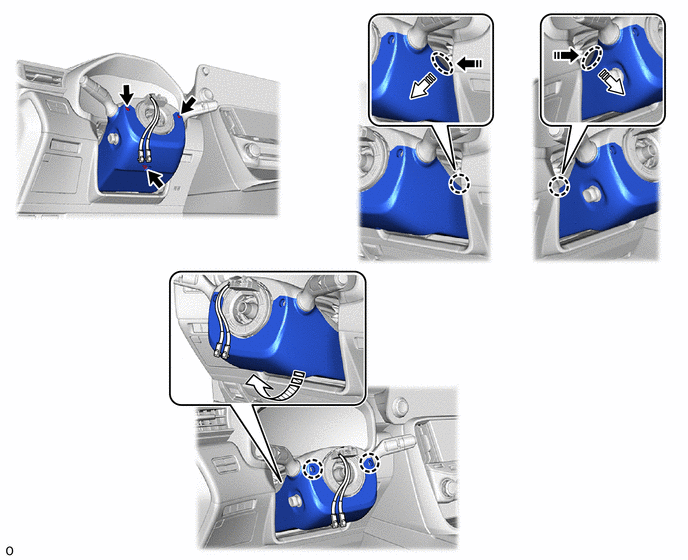

  5. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
    1. GTY1065033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)

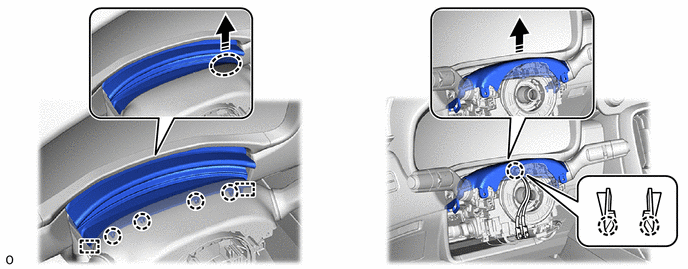

  6. REMOVE UPPER STEERING COLUMN COVER
    1. GTY1065638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

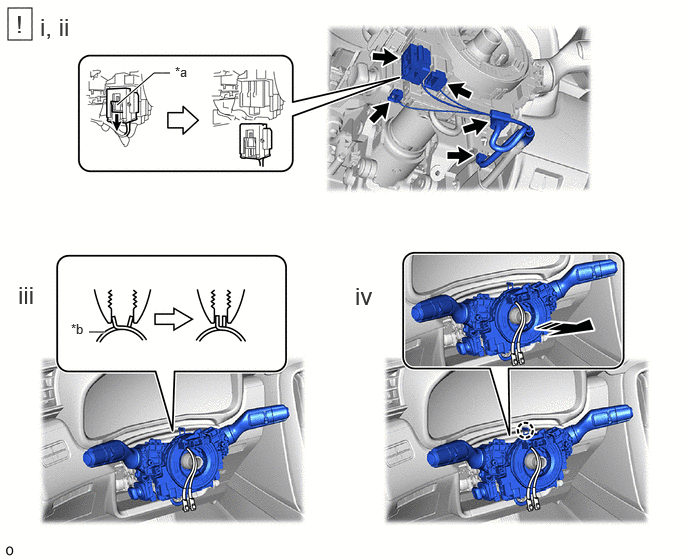

  7. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch to ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch to ON.
    • When rotating the spiral cable with sensor sub-assembly to check the operation of the spiral cable with sensor sub-assembly (checking for abnormal noise, checking the DTC, Data List, etc.), make sure to perform the inspection with the steering wheel assembly installed.
    1. GTY1064707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider *b Clamp
      Remove in this Direction - -
      1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.
      2. Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable with sensor sub-assembly.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2021 - ]

      3. Using pliers, support the band clamp while loosened.
      4. Detach the claw to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

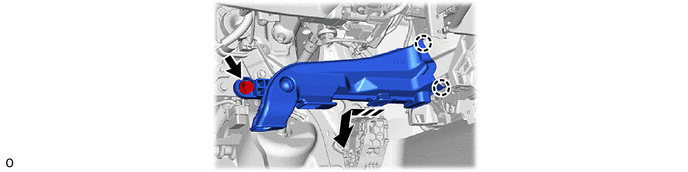

  9. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY
    1. GTY1065278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [12/2021 - ]

  11. REMOVE FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 18

  12. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
    Refer to PROCEDURE - Step 4

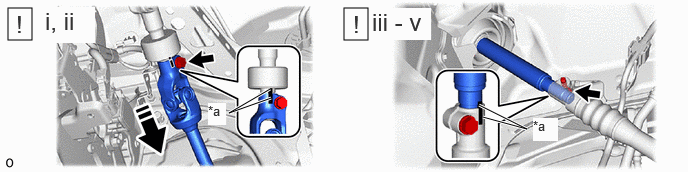

  13. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. GTY1067171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      Slide in this Direction - -
      1. Remove the bolt and slide the steering intermediate shaft assembly.
        NOTE:

        Do not remove the steering intermediate shaft assembly from the steering intermediate shaft.

      2. Put matchmarks on the steering intermediate shaft assembly and steering intermediate shaft.
      3. Remove the steering intermediate shaft assembly from the steering intermediate shaft.
      4. Put matchmarks on the steering intermediate shaft assembly and No. 2 steering intermediate shaft assembly.

        HINT:

        Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft assembly is necessary.

      5. Remove the steering intermediate shaft assembly from the No. 2 steering intermediate shaft assembly.

        HINT:

        Perform this procedure only when replacement of the steering intermediate shaft assembly and No. 2 steering intermediate shaft assembly is necessary.

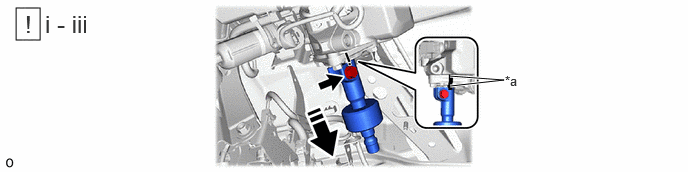

  14. REMOVE STEERING INTERMEDIATE SHAFT
    1. GTY1067073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      Slide in this Direction - -
      1. Remove the bolt and slide the steering intermediate shaft.
        NOTE:

        Do not remove the steering intermediate shaft from the steering column assembly.

      2. Put matchmarks on the steering intermediate shaft and steering column assembly.
      3. Remove the steering intermediate shaft from the steering column assembly.

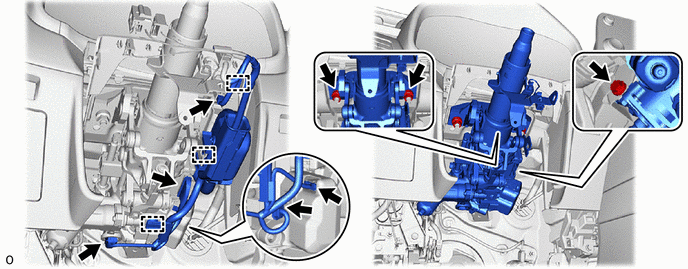

  15. REMOVE STEERING COLUMN ASSEMBLY
    1. GTY1065602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
