Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2021 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE FRONT CONSOLE BOX
  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 6
  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8

  6. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 10

  7. REMOVE NO. 2 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 12

  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14

  9. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 15

  10. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:
    • When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side (*a) facing upward.
      GTY1043139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If the airbag deploys for any reason, it may cause a serious accident.
    1. GTY1057794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turns off - -
      1. Check that the ignition switch is off.
      2. Check that the cable is disconnected from the negative (-) battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
        • If the airbag deploys for any reason, it may cause a serious accident.

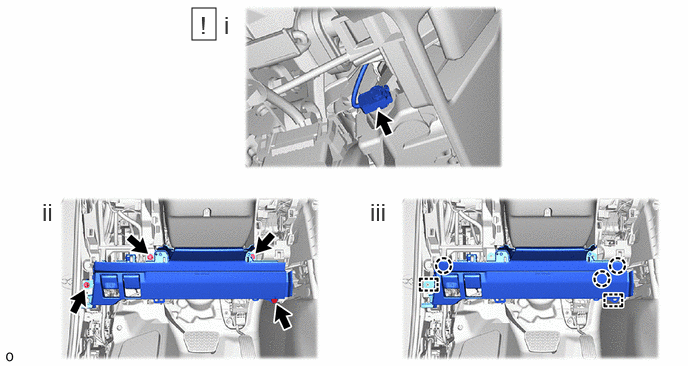

    2. GTY1054879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the airbag connector.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2021 - ]

      2. Remove the 4 bolts.
      3. Detach the claw and guide to remove the lower No. 1 instrument panel airbag assembly.

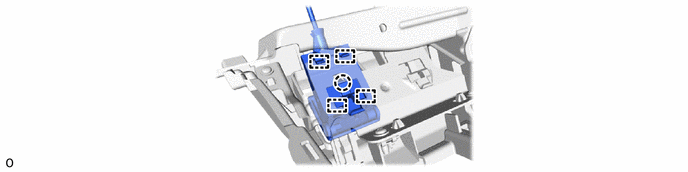

  11. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
    1. GTY1081475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

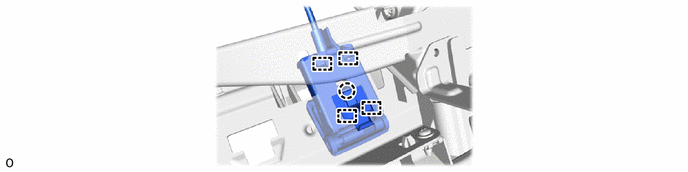

  12. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. GTY1081474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

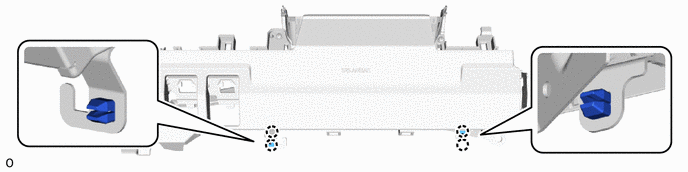

  13. REMOVE GROMMET
    1. GTY1081472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
