Removal [12/2021 - ]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    1. Use the same procedure described for the lower No. 2 instrument panel pad subassembly.

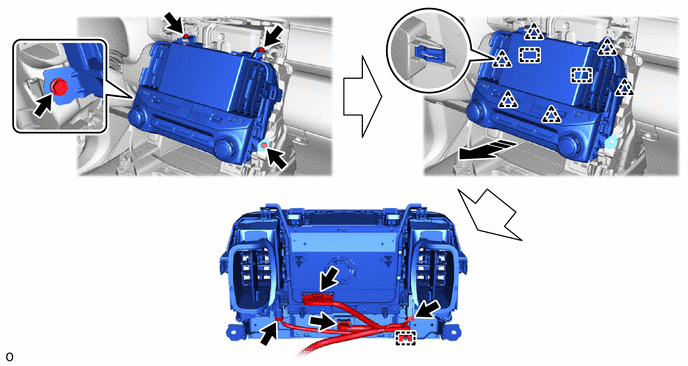

  4. REMOVE AIR CONDITIONING PANEL ASSEMBLY
    1. GTY1072634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

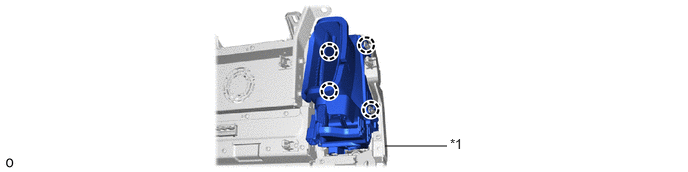

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. GTY1071948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control And Panel Assembly - -
  6. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Use the same procedure for the No. 3 instrument panel register assembly.

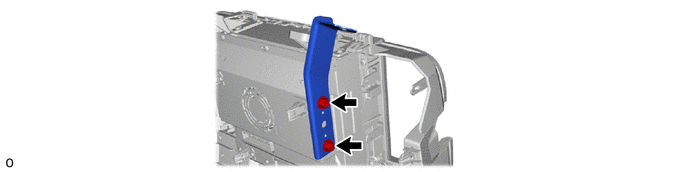

  7. REMOVE SWITCH BRACKET LH
    1. GTY1071654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SWITCH BRACKET RH
    1. Use the same procedure for the switch bracket LH.
