Removal [12/2021 - ]: Procedure

  1. REMOVE RADIATOR WITH COOLER CONDENSER ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE BLOWER ASSEMBLY WITH SHROUD

    Refer to PROCEDURE - Step 43

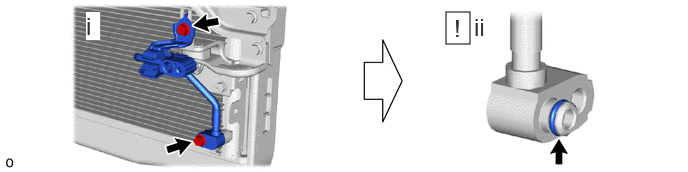

  3. REMOVE NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
    1. GTY1073110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and No. 2 air conditioning tube and accessory assembly.
      2. Remove the O-ring from the No. 2 air conditioning tube and accessory assembly.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

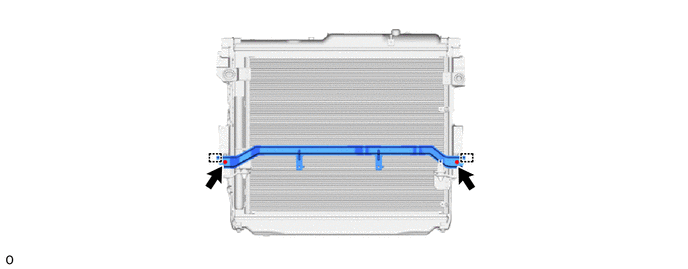

  4. REMOVE COOLER BRACKET
    1. GTY1073007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

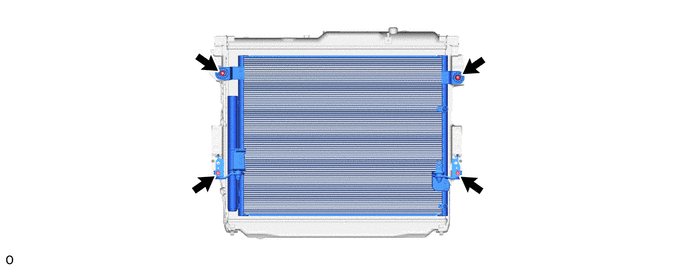

  5. REMOVE COOLER CONDENSER ASSEMBLY
    NOTE:

    Do not damage the cooler condenser assembly and radiator assembly when removing the cooler condenser assembly.
    1. GTY1073006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
