Removal [12/2021 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2021 - ]

  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to PRECAUTION [12/2021 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

  4. REMOVE THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  5. REMOVE NO. 3 TURBO PRESSURE SENSOR

    Refer to PROCEDURE - Step 3

  6. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

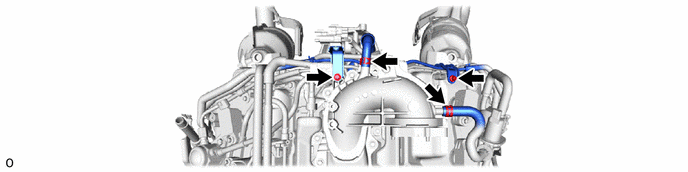

    1. GTY1041368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

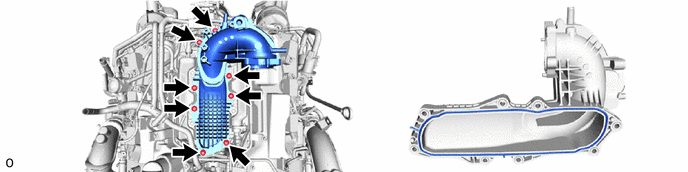

    2. GTY1041366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT WATER HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. DISCONNECT NO. 14 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 8

  9. REMOVE NO. 5 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 9

  10. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 10
  11. REMOVE NO. 1 FUEL DELIVERY PIPE SUB-ASSEMBLY RH
    Refer to PROCEDURE - Step 11
  12. DISCONNECT NO. 6 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 5

  13. REMOVE NO. 1 FUEL DELIVERY PIPE SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 15
  14. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 16

  15. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 17

  16. REMOVE INTAKE MANIFOLD

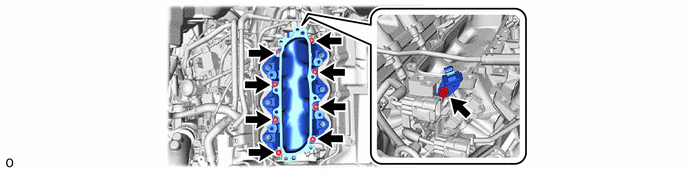

    1. GTY1042560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

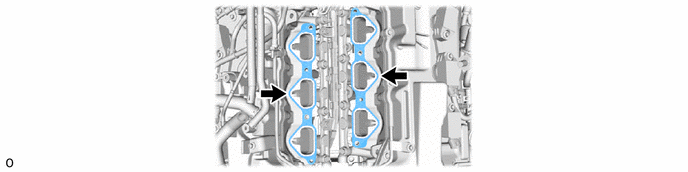

    2. GTY1041423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
