Removal [12/2021 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2021 - ]

  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

  4. REMOVE INTERCOOLER ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  5. DISCONNECT NO. 6 WATER BY-PASS PIPE

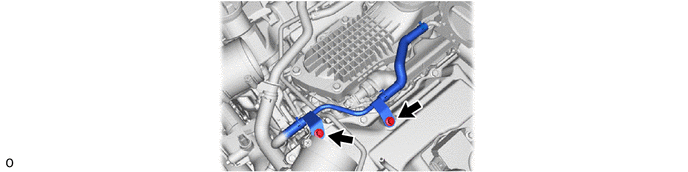

    1. GTY1041036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 FUEL PRESSURE SENSOR HOLDER

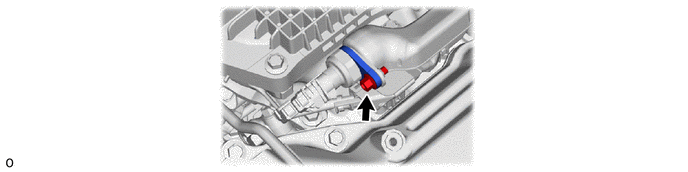

    1. GTY1041240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 FUEL PRESSURE SENSOR

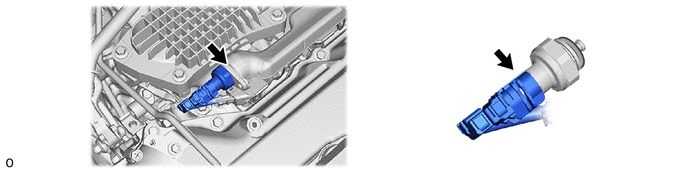

    1. GTY1041035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1041778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
