Removal [12/2021 - ]: Procedure

  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    Refer to PROCEDURE - Step 2
  2. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
    NOTE:

    Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.

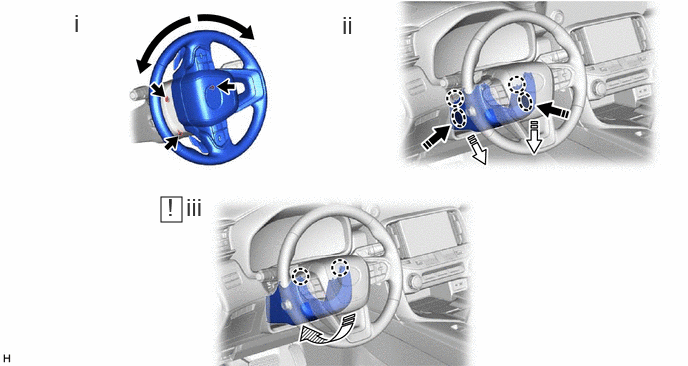

    1. GTY1070935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)
      1. Turn the steering wheel and remove the 3 screws.
      2. Press the part in the direction of the arrow shown in the illustration to detach the claw.
      3. Detach the 2 claws and remove the lower steering column cover.
        NOTE:

        Do not damage the tilt and telescopic switch.

  3. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 6

  4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

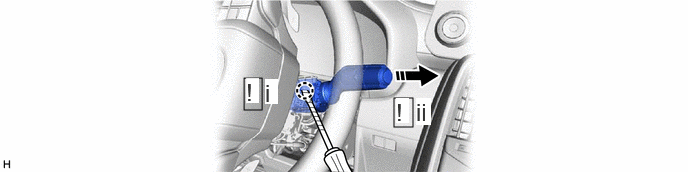

    1. GTY1071075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Turn the steering wheel assembly to the right.
      2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
        NOTE:

        If the claw is pulled with excessive force, it may break.
